COMPONENTS (INSTALLATION)

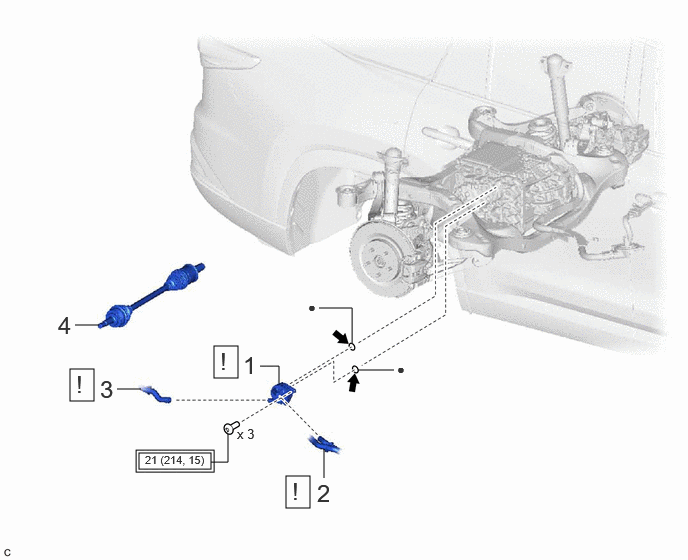

Fig 1: Oil Cooler Installation Components With Torque Specifications [09/2023 - 12/2023] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	REAR TRANSAXLE MOTOR COOLING COOLER	G125AB	See step 1	-	-
2	NO. 1 INVERTER COOLING HOSE ASSEMBLY	G90A0A	See step 2	-	-
3	NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY	32930F	See step 3	-	-
4	REAR DRIVE SHAFT ASSEMBLY RH	42330	-	-	-

	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Toyota Genuine e-Transaxle Fluid TE	-	-

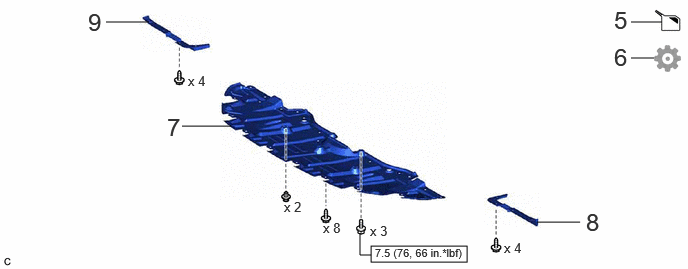

Fig 2: Oil Cooler Installation Components With Torque Specifications [09/2023 - 12/2023] (2 Of 2)

Procedure		Part Name Code
5	ADD COOLANT (for Intercooler)	-	-	See step 5	-
6	INSPECT FOR COOLANT LEAK (for Intercooler)	-	-	-	See step 6
7	NO. 1 ENGINE UNDER COVER	51441	-	-	-
8	FRONT WHEEL OPENING EXTENSION PAD LH	53852B	-	-	-
9	FRONT WHEEL OPENING EXTENSION PAD RH	53851D	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque
