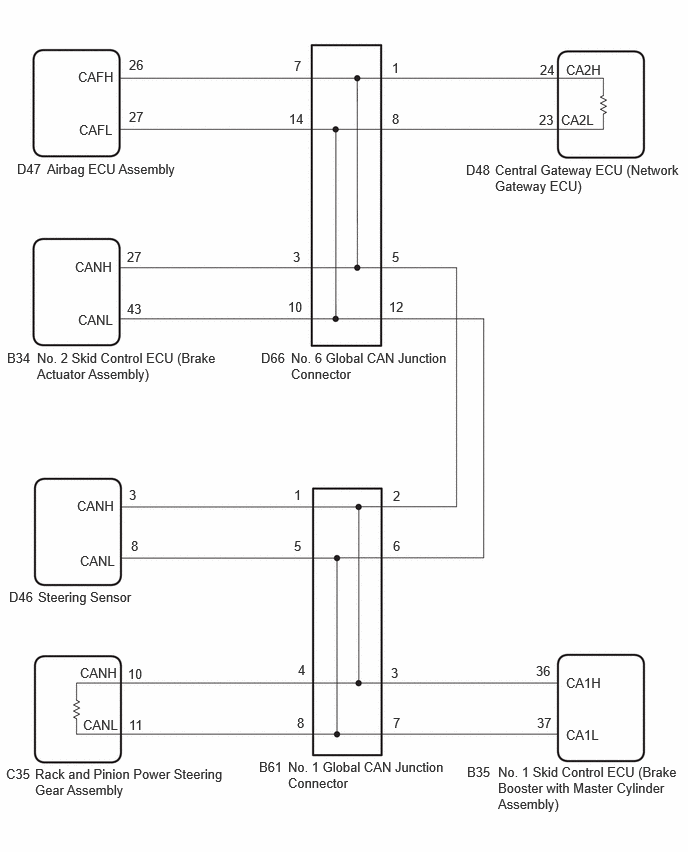

Check Bus 4 Line [12/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
GTY1228831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
