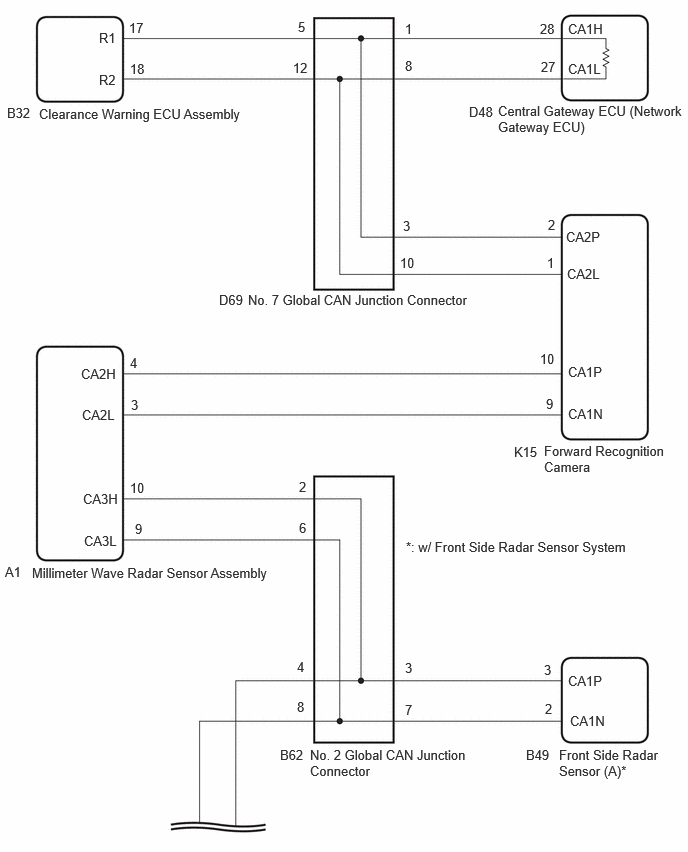

Check Bus 1 Line [12/2023 - ]: Wiring Diagram
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

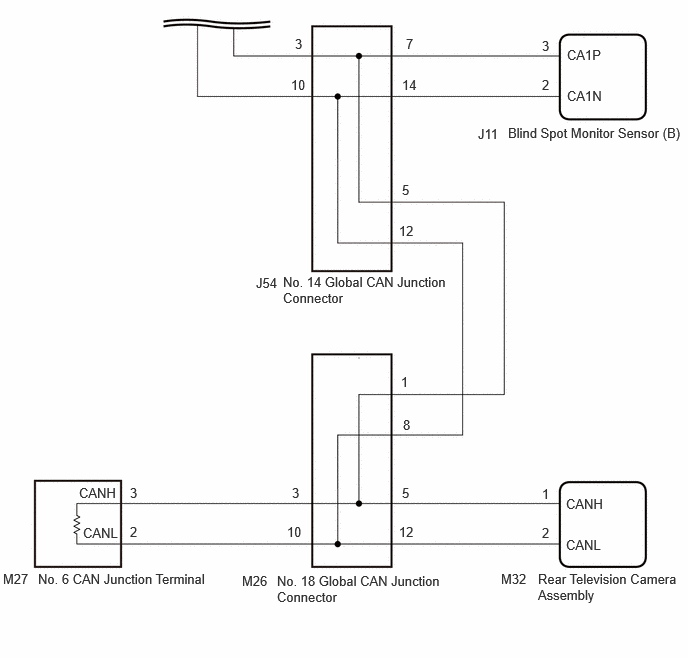

w/ Panoramic View Monitor System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

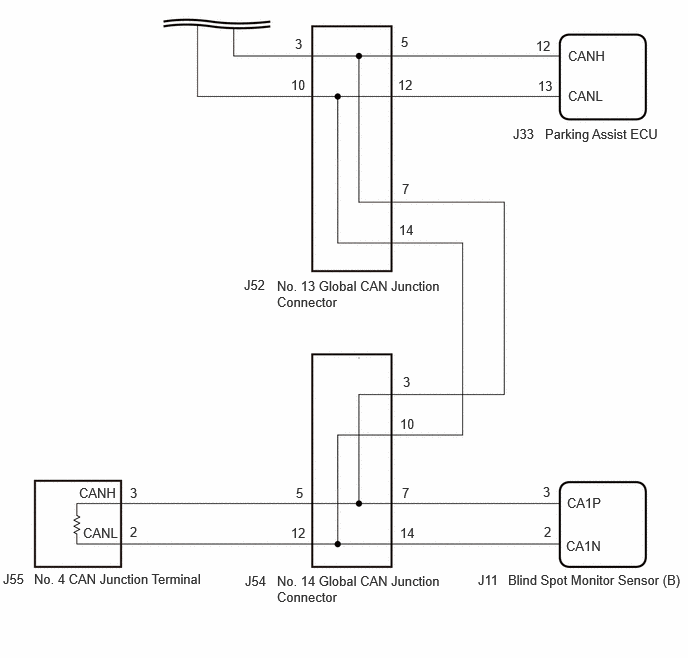

w/ Parking Assist Monitor System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
