DTC P0D11-15: Hybrid/EV Battery Charging System Negative Contactor Control Circuit Short to Auxiliary Battery or Open [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE USING GTS (AC CHARGING NEGATIVE RELAY STATUS)

    Pre-procedure1

    • None.
    • Read the Data List.

      Powertrain > HV Battery > Data List

      Tester Display
      AC Charging Negative Relay Status

      Standard

      Tester Display Condition Specified Condition
      AC Charging Negative Relay Status Ignition switch ON OFF

      Result

      Result Proceed to
      The value of AC Charging Negative Relay Status is OFF A
      None of the above conditions are met B

    Post-procedure1

    • Turn the ignition switch off.

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY)

    See step  1

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  3

  3. CHECK CONNECTOR CONNECTION CONDITION (NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY)

    See step  3

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [12/2023 - ]

    Result:

    NG

    CONNECT SECURELY

  4. CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY)

    See step  1

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (CHRG VOLTAGE)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.

    • Connect the SST.

      HINT:

      Refer to Instructions for Connecting SST [12/2023 - ]

    • Disconnect the battery ECU assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY1231486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Connect the cable to the negative (-) auxiliary battery terminal.
    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      j4-6 (CHRG) - Body ground Ignition switch ON Below 1 V V
      NOTE:
      • Turning the ignition switch to ON with the service plug grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.
      • If the ignition switch is turned to ON with the connectors disconnected, other DTCs will be stored. Be sure to clear the DTCs after the inspection.
      GTY1239901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Battery ECU Assembly)

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Turn the ignition switch off.
    • Disconnect the cable from the negative (-) auxiliary battery terminal.
    • Reconnect the battery ECU assembly connector.
    • Disconnect the SST.

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [12/2023 - ]

    Result:

    NG

    See step  6

  6. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BODY GROUND)

    See step  2

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  7

  7. CHECK CONNECTOR CONNECTION CONDITION (NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY)

    See step  3

    Result

    Result
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (SHORT TO POWER SUPPLY WIRES)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.

    • Connect the SST.

      HINT:

      Refer to Instructions for Connecting SST [12/2023 - ]

    • Disconnect the battery ECU assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY1231486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Disconnect the No. 2 traction battery device box assembly connector.
      GTY1236150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

    • Measure the resistance according to the value(s) in the tables below.
      GTY1231173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Traction Battery Device Box Assembly)
      *b Front view of wire harness connector
      (to Battery ECU Assembly)

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition Result
      j15-3 (CHRG) - j4-6 (CHRG) Ignition switch off Below 1 Ω Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition Result
      j15-3 (CHRG) and j4-6 (CHRG) - Body ground and other terminals Ignition switch off 10 kΩ or higher kΩ
    • Connect the cable to the negative (-) auxiliary battery terminal.
    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      j15-3 (CHRG) and j4-6 (CHRG) - Body ground Ignition switch ON Below 1 V V
      NOTE:
      • Turning the ignition switch to ON with the service plug grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.
      • If the ignition switch is turned to ON with the connectors disconnected, other DTCs will be stored. Be sure to clear the DTCs after the inspection.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Turn the ignition switch off.
    • Disconnect the cable from the negative (-) auxiliary battery terminal.
    • Reconnect the No. 2 traction battery device box assembly connector.
    • Reconnect the battery ECU assembly connector.
    • Disconnect the SST.

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [12/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  9. CHECK CONNECTOR CONNECTION CONDITION (NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY)

    See step  3

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  10

  10. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.

    • Disconnect the battery ECU assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY1231486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Disconnect the No. 2 traction battery device box assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY1236150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Measure the resistance according to the value(s) in the tables below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition Result
      j15-3 (CHRG) - j4-6 (CHRG) Ignition switch off Below 1 Ω Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition Result
      j15-3 (CHRG) and j4-6 (CHRG) - Body ground and other terminals Ignition switch off 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the No. 2 traction battery device box assembly connector.
    • Reconnect the battery ECU assembly connector.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. CHECK HARNESS AND CONNECTOR (NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY - BODY GROUND)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.

    • Disconnect the No. 2 traction battery device box assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY1236150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Measure the resistance according to the value(s) in the tables below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      j15-5 (GND8) - Body ground Ignition switch off Below 1 Ω Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the No. 2 traction battery device box assembly connector.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  12

  12. INSPECT NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY (CHRG)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.

    • Disconnect the No. 2 traction battery device box assembly connector.
      GTY1236150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

    • Measure the resistance according to the value(s) in the table below.

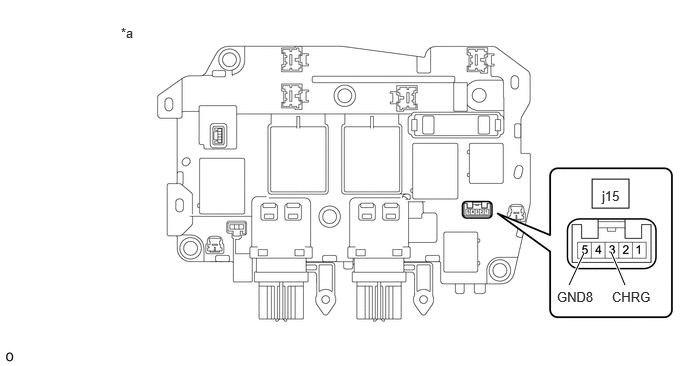

      GTY1230466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 2 Traction Battery Device Box Assembly)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      j15-3 (CHRG) - j15-5 (GND8) -40 to 80°C (-40 to 176°F) 20.6 to 40.8 Ω Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the No. 2 traction battery device box assembly connector.

    Result:

    OK

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [12/2023 - ]

    Result:

    NG

    REPLACE NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY. Refer to  REMOVAL [12/2023 - ]
