DTC P0C30-00: Hybrid/EV Battery State of Charge High [12/2023 - ]: Procedure
- CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)
Pre-procedure1
- None.
- Check for DTCs.
Powertrain > HV Battery > Trouble Codes
Powertrain > Hybrid Control > Trouble Codes
Result
Result Proceed to "P0C30-00" only is output. A DTCs except "P0C30-00" of hybrid battery system are output. B DTCs except "P0C30-00" of hybrid control system are output. C
Post-procedure1
- Turn the ignition switch off.
Result:
B
GO TO DTC CHART (HYBRID BATTERY SYSTEM). Refer To HYBRID CONTROL SYSTEM - DIAGNOSTICS - INTRODUCTION
Result:
C
GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to DIAGNOSTIC TROUBLE CODE CHART [12/2023 - ]
Result:
A
See step 2
- CHECK FREEZE FRAME DATA (HV BATTERY)
Pre-procedure1
- None.
- Read the freeze frame data of DTC P0C30-00.
Powertrain > HV Battery > Trouble Codes
Result
Result Proceed to OFF is displayed for "Ready Signal", "SMRP Control Status", "SMRB Control Status" and "SMRG Control Status" and -0.5 A or less is displayed for "Hybrid/EV Battery Current". A Other than above B HINT:
As the ignition switch ON state may cause the DTC to be stored, freeze frame data is used to judge the cause of the DTC output.
Post-procedure1
- Turn the ignition switch off.
Result:
B
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to REMOVAL [12/2023 - ]
Result:
A
See step 3
- INSPECT NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY (SMRB, SMRG, SMRP) WARNING:
Be sure to wear insulated gloves and protective goggles.
Pre-procedure1
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.

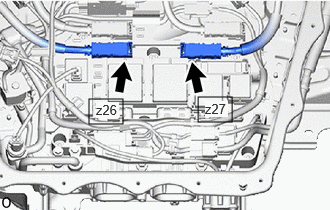

- Disconnect the HV battery high voltage connector from the No. 2 traction battery device box assembly.NOTE:
Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.
- Measure the resistance according to the value(s) in the table below.

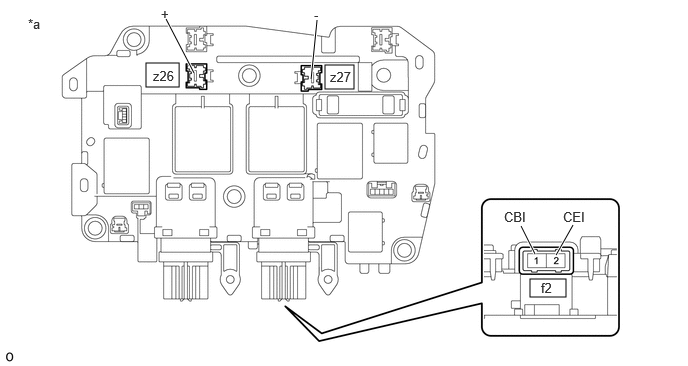

*a Component without harness connected
(No. 2 Traction Battery Device Box Assembly)- - Standard Resistance (SMRB)
Tester Connection Condition Specified Condition Result f2-1 (CBI) - z26-1 (+) Ignition switch off 10 kΩ or higher kΩ Standard Resistance (SMRG, SMRP)
Tester Connection Condition Specified Condition Result f2-2 (CEI) - z27-1 (-) Ignition switch off 10 kΩ or higher kΩ Result
Proceed to OK NG
Post-procedure1
- Reconnect the HV battery high voltage connector to the No. 2 traction battery device box assembly.
Result:
NG
REPLACE NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY. Refer to REMOVAL [12/2023 - ]
Result:
OK
See step 4
- Check that the service plug grip is not installed.
- PERFORM INITIALIZATION (CURRENT SENSOR OFFSET LEARNING)
Pre-procedure1
- Turn the ignition switch to ON (READY).
- Perform a road test.NOTE:
Accelerate/decelerate gently. Avoid rapid acceleration/deceleration.
- Drive the vehicle with the value of Data List item "Hybrid/EV Battery Current" between -50 A to 50 A.
Powertrain > HV Battery > Data List
Tester Display Hybrid/EV Battery Current HINT:
Distance and driving time are not specified.
- Turn the ignition switch off and leave the vehicle for 30 seconds or more.
- Check that the value of "Hybrid/EV Battery Current" is between - 0.5 A and 0.5 A with the ignition switch ON.
Powertrain > HV Battery > Data List
Tester Display Hybrid/EV Battery Current NOTE:- If the value is outside the specified range, perform the road test again.
- This DTC may be output if Current Sensor Offset Learning has not been completed.
HINT:
- If the ignition switch is ON and the value of "Hybrid/EV Battery Current" is between - 0.5 A and 0.5 A, current sensor offset learning has been completed.
- Even if the current sensor offset learning is not complete, the current sensor value will be corrected by repeating the road test a maximum of 7 times.
Result
Proceed to NEXT
Post-procedure1
- Turn the ignition switch off.
Result:
NEXT
END
