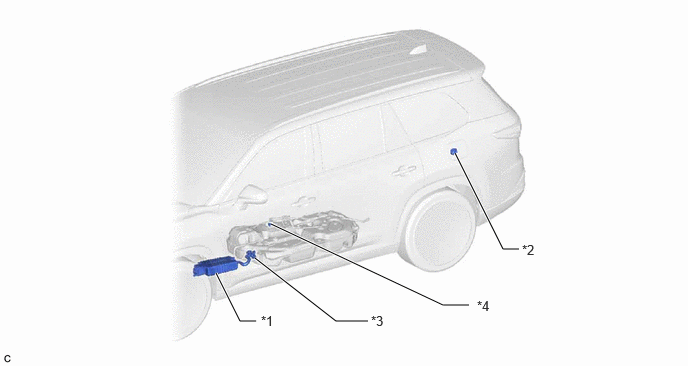

Parts Location [09/2023 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | FUEL TANK CAP ASSEMBLY |
| *3 | FUEL VAPOR CONTAINMENT VALVE (CLOSE TANK VALVE ASSEMBLY) | *4 | FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR) |
