Fuel Lid Opener does not Operate [12/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. for 1Motor-HEV Model
    GTY1232125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

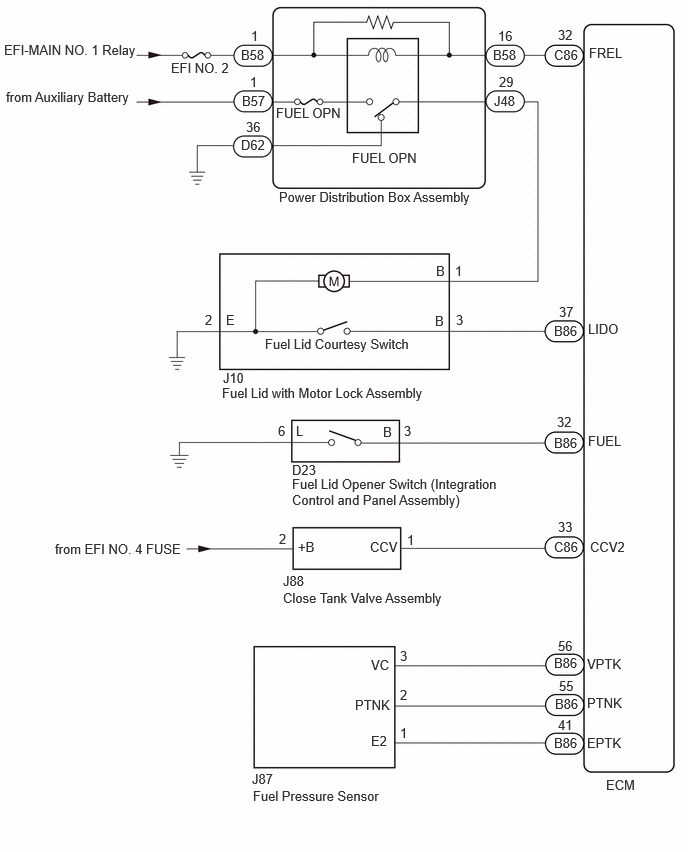

  2. for PHEV Model
    GTY1237730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
