Parts Location [12/2023 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

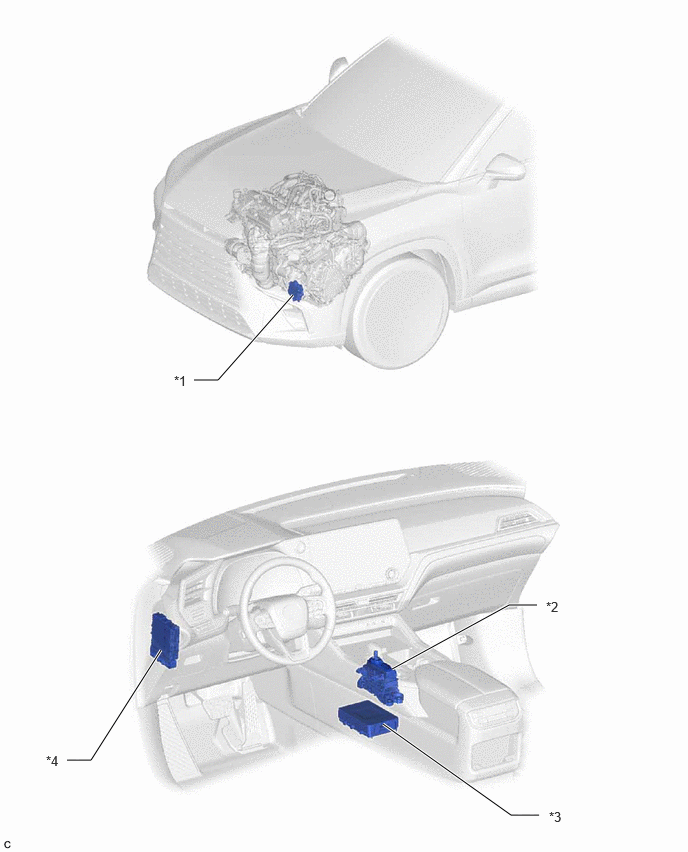

| *1 |
SHIFT CONTROL ACTUATOR ASSEMBLY
- SHIFT ACTUATOR ECU
- ROTATION ANGLE SENSOR
- ACTUATOR MOTOR
|
*2 |
TRANSMISSION FLOOR SHIFT ASSEMBLY
- SHIFT CONTROL ECU
- P POSITION SWITCH
- SHIFT LEVER ASSEMBLY
- SHIFT SENSOR
|
| *3 |
INTEGRATION CONTROL SUPPLY (INTEGRATED CAPACITOR) |
*4 |
HYBRID VEHICLE CONTROL ECU ASSEMBLY |
