Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

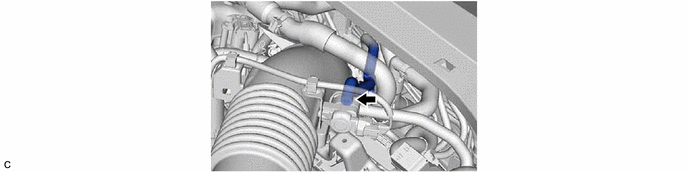

  1. DISCONNECT FUEL VAPOR FEED HOSE ASSEMBLY
    1. GTY1229852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

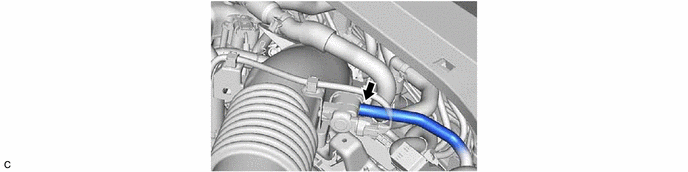

  2. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE ASSEMBLY
    1. GTY1229849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

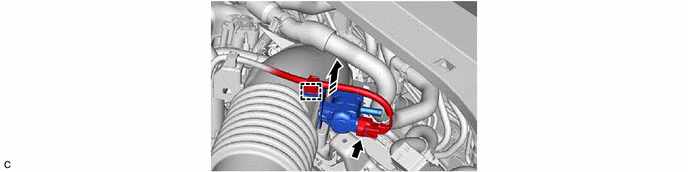

  3. REMOVE PURGE VALVE (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY)
    1. GTY1229851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
