Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (REMOVAL)

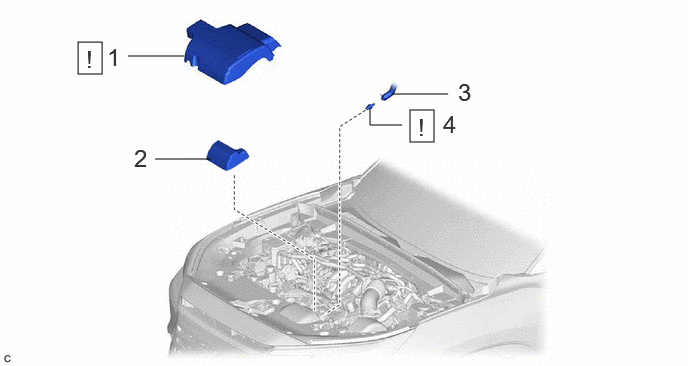

Fig 1: PCV Valve Removal Components

Procedure		Part Name Code
1	V-BANK COVER SUB-ASSEMBLY	11209	See step 1	-	-
2	NO. 1 ENGINE COVER	12611	-	-	-
3	VENTILATION HOSE	12261	-	-	-
4	PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)	12204	See step 4	-	-
