COMPONENTS (INSTALLATION)

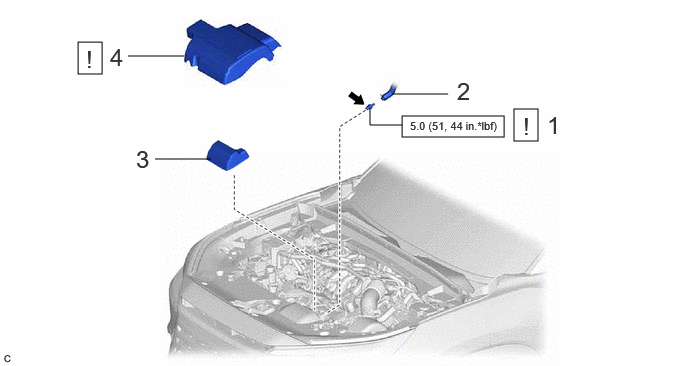

Fig 1: PCV Valve Installation Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)	12204	See step 1	-	-
2	VENTILATION HOSE	12261	-	-	-
3	NO. 1 ENGINE COVER	12611	-	-	-
4	V-BANK COVER SUB-ASSEMBLY	11209	See step 4	-	-

Engine oil
