Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

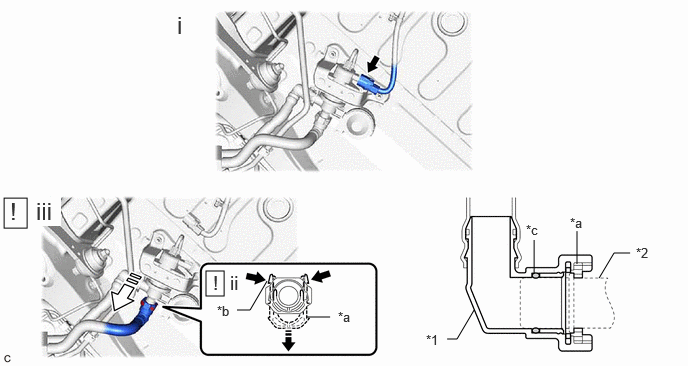

  1. DISCONNECT NO. 2 FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. GTY1230045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Fuel Tank Vent Hose Sub-assembly *2 Fuel Vapor Containment Valve (Fuel Tank Solenoid with Hose Valve Assembly)
      *a Retainer *b Tab
      *c O-ring - -
      Pull Pull off
      Pinch - -
      1. Disconnect the connector of the fuel vapor containment valve (fuel tank solenoid with hose valve assembly).
      2. Lower the retainer to disengage it.
        NOTE:

        Do not remove the retainer.

      3. Disconnect the No. 2 fuel tank vent hose sub-assembly from the fuel vapor containment valve (fuel tank solenoid with hose valve assembly).
        NOTE:
        • Before disconnecting the No. 2 fuel tank vent hose sub-assembly, check that the No. 2 fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly) are not dirty. If they are dirty, clean them.
        • The No. 2 fuel tank vent hose sub-assembly seals the No. 2 fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly) through the O-ring. Therefore, be careful not to damage the connecting part or allow foreign matter to adhere.
        • Perform removal and installation work by hand. Do not use any tools.
        • If the No. 2 fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly) are stuck, pinch the fuel vapor containment valve (fuel tank solenoid with hose valve assembly) and push and pull the No. 2 fuel tank vent hose sub-assembly to free them apart, and then disconnect the No. 2 fuel tank vent hose sub-assembly.
        • Do not damage the No. 2 fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly), or allow foreign matter to enter inside the fuel vapor containment valve (fuel tank solenoid with hose valve assembly).
        • Protect the disconnected No. 2 fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly) with a plastic bag.

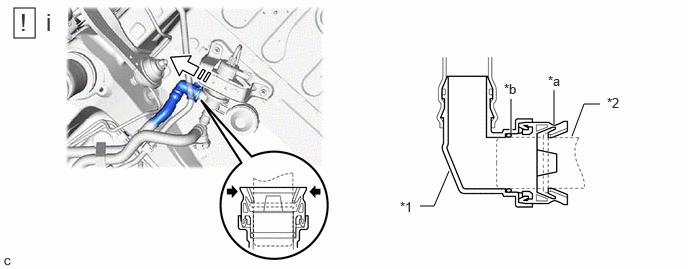

  2. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. GTY1234385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Tank Vent Hose Sub-assembly *2 Fuel Vapor Containment Valve (Fuel Tank Solenoid with Hose Valve Assembly)
      *a Retainer *b O-ring
      Pinch Pull off
      1. Disconnect the fuel tank vent hose sub-assembly from the fuel vapor containment valve (fuel tank solenoid with hose valve assembly).
        NOTE:
        • Before disconnecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly) are not dirty. If they are dirty, clean them.
        • The fuel tank vent hose sub-assembly seals the tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly) through the O-ring. Therefore, be careful not to damage the connecting part or allow foreign matter to adhere.
        • Perform removal and installation work by hand. Do not use any tools.
        • If the fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly) are stuck, pinch the fuel vapor containment valve (fuel tank solenoid with hose valve assembly) and push and pull the fuel tank vent hose sub-assembly to free them apart, and then disconnect the fuel tank vent hose sub-assembly.
        • Do not damage the fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly), or allow foreign matter to enter inside the fuel vapor containment valve (fuel tank solenoid with hose valve assembly).
        • Protect the disconnected fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid with hose valve assembly) with a plastic bag.

        1. Push the fuel tank vent hose sub-assembly firmly toward the fuel vapor containment valve (fuel tank solenoid with hose valve assembly).

        2. Pinch the fuel tank vent hose sub-assembly as shown in the illustration.

        3. Pull off the fuel tank vent hose sub-assembly.

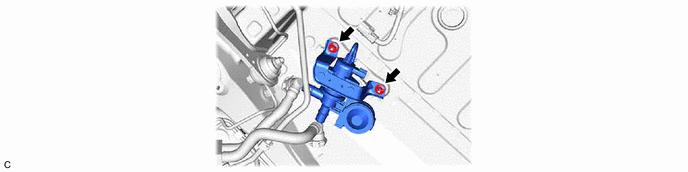

  3. REMOVE FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID WITH HOSE VALVE ASSEMBLY)
    1. GTY1234298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CHARCOAL CANISTER BRACKET SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the charcoal canister bracket sub-assembly is necessary.

    GTY1230948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
