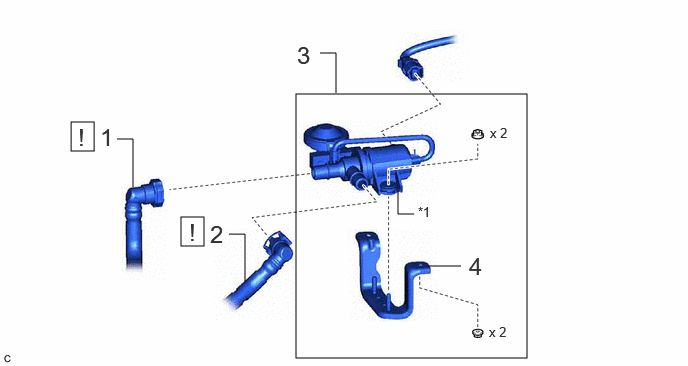

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 2 FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404B | See step 1 | - | - |
| 2 | FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404 | See step 2 | - | - |
| 3 | FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID WITH HOSE VALVE ASSEMBLY) | 77070 | - | - | - |
| 4 | CHARCOAL CANISTER BRACKET SUB-ASSEMBLY | 77705 | - | - | - |
| *1 | FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY) | - | - |
