COMPONENTS (REMOVAL)

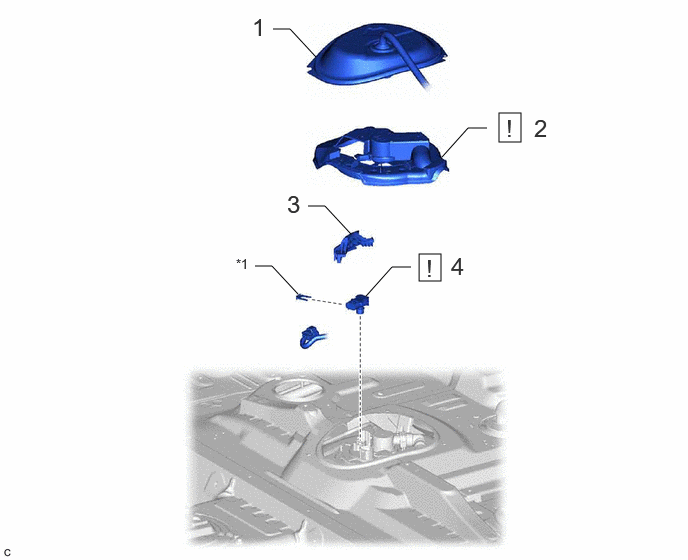

Fig 1: Fuel Tank Pressure Sensor Removal Components

Procedure		Part Name Code
1	REAR FLOOR SERVICE HOLE COVER	58325E	-	-	-
2	FUEL TANK COVER	77641B	See step 2	-	-
3	NO. 1 FUEL TUBE CLAMP	77285D	-	-	-
4	FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)	89461	See step 4	-	-

TUBE JOINT CLIP
