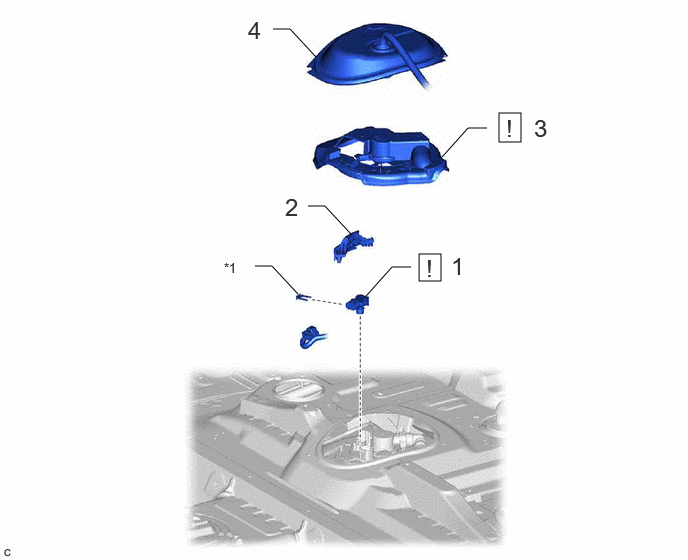

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR) | 89461 | See step 1 | - | - |
| 2 | NO. 1 FUEL TUBE CLAMP | 77285D | - | - | - |
| 3 | FUEL TANK COVER | 77641B | See step 3 | - | - |
| 4 | REAR FLOOR SERVICE HOLE COVER | 58325E | - | - | - |
| *1 | TUBE JOINT CLIP | - | - |
