The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during EGR valve assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*	Refer to INITIALIZATION [09/2023 - ]
Replacement of EGR valve assembly Gas leak from exhaust system is repaired	Inspection After Repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [12/2023 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

WARNING:

Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the service information.
Refer to PRECAUTION [09/2023 - ]

Fig 1: Charging System Precaution
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.

Fig 2: Wear Insulated Gloves
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lighting System (w/ Automatic Headlight Beam Level Control System)	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [09/2023 - ]
Front Camera System
Adaptive High Beam System

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

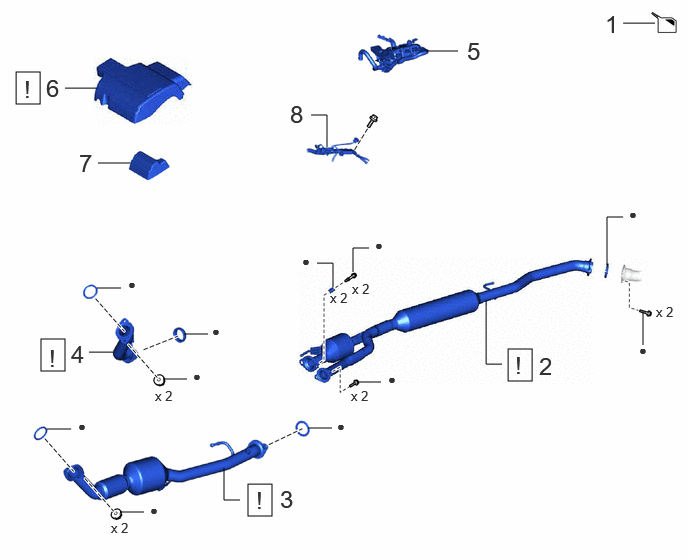

Fig 1: EGR Valve Removal Components (1 Of 2)

Procedure		Part Name Code
1	DRAIN ENGINE COOLANT (for Engine)	-	-	See step 1	-
2	FRONT EXHAUST PIPE ASSEMBLY	17410	See step 2	-	-
3	FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY	17402	See step 3	-	-
4	FRONT EXHAUST PIPE SUB-ASSEMBLY	17401	See step 4	-	-
5	ELECTRIC HEATER SUB-ASSEMBLY	87101G	-	-	-
6	V-BANK COVER SUB-ASSEMBLY	11209	See step 6	-	-
7	NO. 1 ENGINE COVER	12611	-	-	-
8	WIRE HARNESS	-	-	-	-

•

Non-reusable part

Fig 2: EGR Valve Removal Components (2 Of 2)

Procedure		Part Name Code
9	NO. 2 EGR PIPE	25612	See step 9	-	-
10	NO. 2 EGR PIPE GASKET	25629A	-	-	-
11	NO. 10 WATER BY-PASS HOSE AND NO. 11 WATER BY-PASS HOSE	-	-	-	-
12	NO. 6 WATER BY-PASS HOSE	16283	-	-	-
13	EGR VALVE ASSEMBLY	25620	-	-	-
14	EGR INLET GASKET	25628	-	-	-

*1	NO. 1 EGR PIPE	*2	EGR COOLER BRACKET
*3	EGR COOLER ASSEMBLY	*4	STUD BOLT
*5	NO. 9 WATER BY-PASS HOSE	*6	EGR VALVE GASKET
•	Non-reusable part	-	-
