Caution / Notice / Hint
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

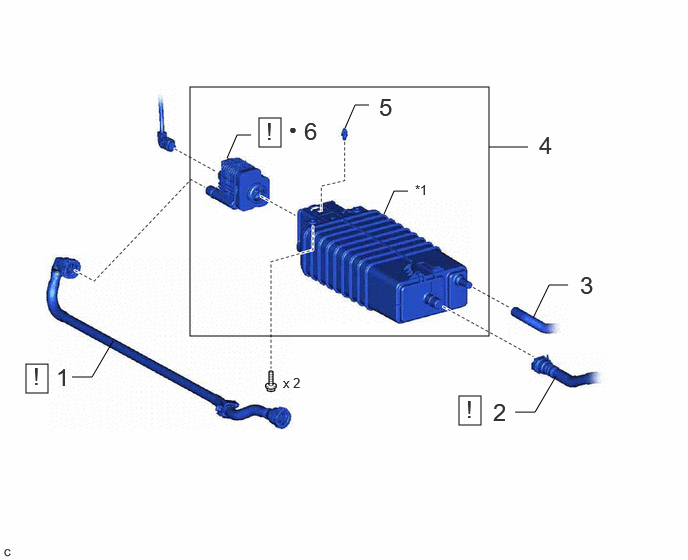

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 7 FUEL TANK BREATHER TUBE | 77227B | See step 1 | - | - |
| 2 | NO. 2 FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404B | See step 2 | - | - |
| 3 | FUEL EMISSION HOSE | 77249 | - | - | - |
| 4 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | 77740 | - | - | - |
| 5 | CHARCOAL CANISTER OUTLET GUIDE | 77775 | - | - | - |
| 6 | LEAK DETECTION PUMP SUB-ASSEMBLY | 77740R | See step 6 | - | - |
| *1 | CHARCOAL CANISTER SUB-ASSEMBLY | - | - |
| • | Non-reusable part | - | - |
