On-Vehicle Inspection [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT INTAKE SYSTEM

HINT:

Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

Refer to INITIALIZATION [12/2023 - ]

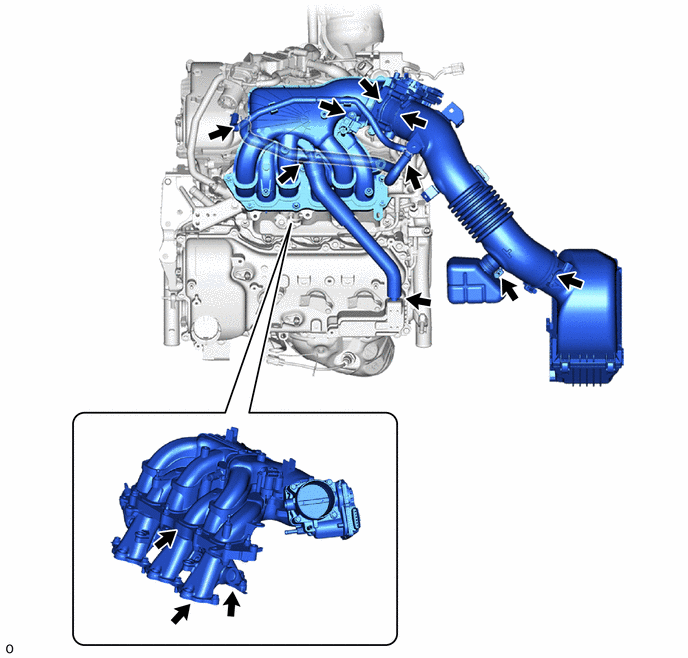

Check that there are no vacuum leaks at the points shown in the illustration.

PERFORM INITIALIZATION
HINT:

Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

Refer to INITIALIZATION [12/2023 - ]
