Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. DRAIN FUEL
  3. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

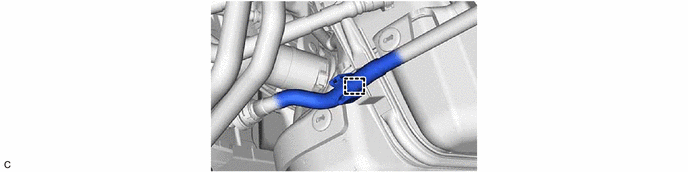

  4. DISCONNECT NO. 7 FUEL TANK BREATHER TUBE
    1. GTY1241163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. GTY1230198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank vent hose sub-assembly from the fuel vapor containment valve (close tank with bolt valve assembly).

        Refer to PRECAUTION [12/2023 - ]

  6. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. GTY1232462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank main tube sub-assembly from the fuel pipe.

        Refer to PRECAUTION [12/2023 - ]

  7. DISCONNECT FUEL TANK BREATHER TUBE
    1. GTY1240728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank breather tube from the fuel tank breather tube sub-assembly.

        Refer to PRECAUTION [12/2023 - ]

  8. DISCONNECT FUEL TANK FILLER PIPE ASSEMBLY
    1. GTY1236546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank filler pipe assembly from the fuel tank sub-assembly.

        Refer to PRECAUTION [12/2023 - ]

  9. REMOVE FUEL TANK SUB-ASSEMBLY
    WARNING:

    The fuel tank sub-assembly is very heavy. Be sure to follow the procedure described in the appropriate service information , or the fuel tank sub-assembly may fall off the engine lifter.

    GTY563885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

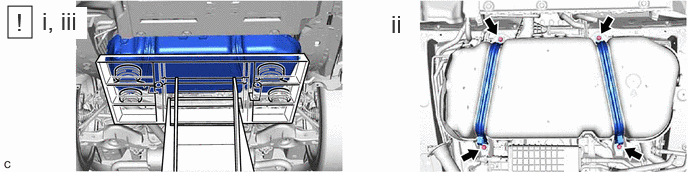

    1. GTY1227788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Support the fuel tank sub-assembly using an engine lifter.

        HINT:

        Using height adjustment attachments and plate lift attachments, keep the fuel tank sub-assembly horizontal.

      2. Remove the 4 bolts and 2 No. 1 fuel tank band sub-assembly LH.
      3. Lower the engine lifter to remove the fuel tank sub-assembly.
        NOTE:
        • Be careful not to drop the fuel tank sub-assembly.
        • When removing the fuel tank sub-assembly, tilt it slightly to prevent it from interfering with the surrounding parts.

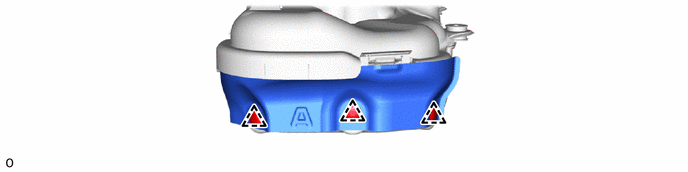

  10. REMOVE NO. 1 FUEL TANK PROTECTOR
    1. GTY1233265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

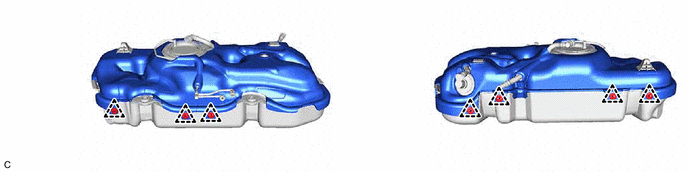

  11. REMOVE UPPER FUEL TANK COVER
    1. GTY1241215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

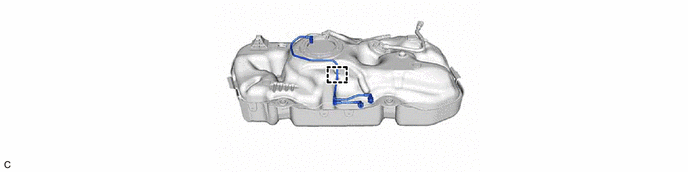

  12. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. GTY1238002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

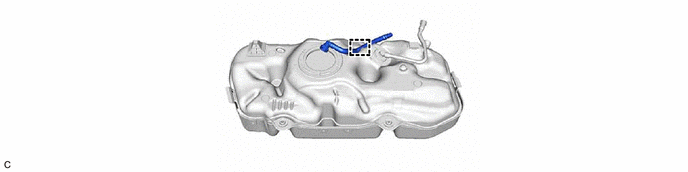

  13. REMOVE FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. GTY1238001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

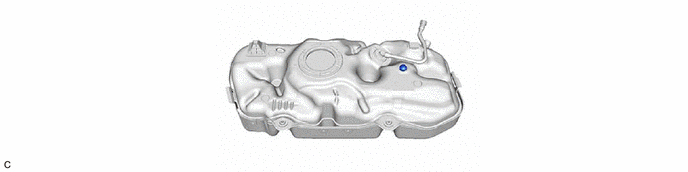

  14. REMOVE NO. 6 FUEL TANK CUSHION
    1. GTY1238000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

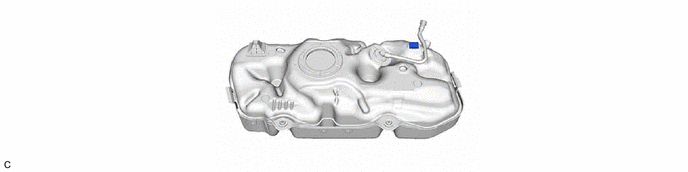

  15. REMOVE NO. 2 FUEL TANK CUSHION
    1. GTY1238003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

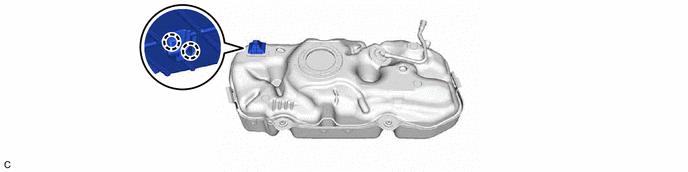

  16. REMOVE NO. 1 FUEL TANK CUSHION
    1. GTY1238005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

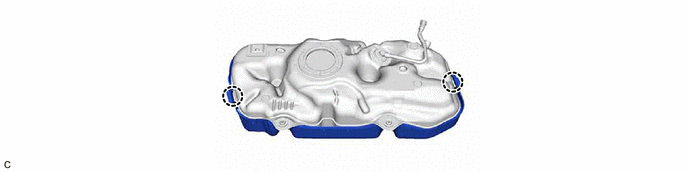

  17. REMOVE NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
    1. GTY1238004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
