Installation [12/2023 - ]: Procedure

WARNING: The fuel tank sub-assembly is very heavy. Be sure to follow the procedure described in the appropriate service information , or the fuel tank sub-assembly may fall off the engine lifter. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

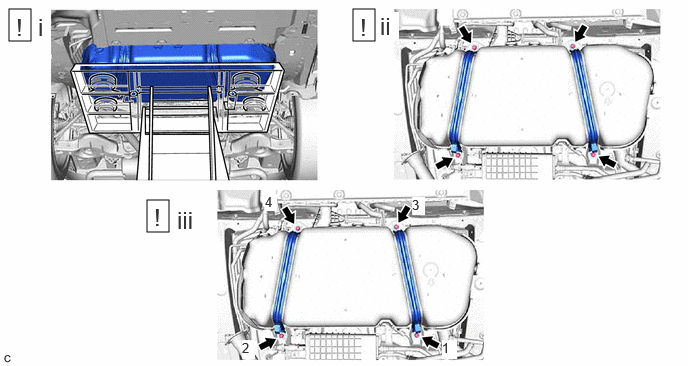

1. Fig 1: Fuel Tank Sub-Assembly Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Set the fuel tank sub-assembly on an engine lifter.
      NOTE:

      Using height adjustment attachments and plate lift attachments, keep the fuel tank sub-assembly horizontal.

   2. Using the engine lifter, slowly raise the fuel tank sub-assembly, and then temporarily install the 2 No. 1 fuel tank band sub-assembly LH with the 4 bolts.
      NOTE:

      • Be careful not to drop the fuel tank sub-assembly.
      • When installing the fuel tank sub-assembly, tilt it slightly to prevent it from interfering with the surrounding parts.
   3. Tighten the 4 bolts in the order shown in the illustration.

      Torque: 45 N.m (459 kgf/cm, 33 ft.lbf)

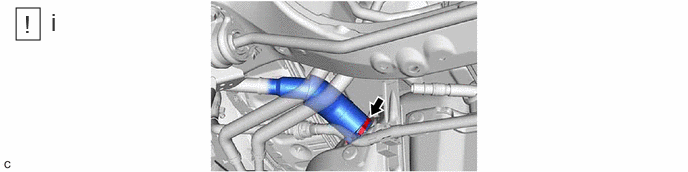

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the fuel tank filler pipe assembly to the fuel tank sub-assembly.

      Refer to PRECAUTION [12/2023 - ]

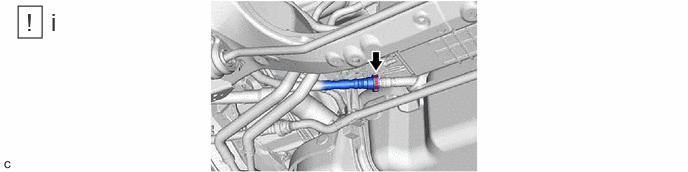

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the fuel tank breather tube to the fuel tank breather tube sub-assembly.

      Refer to PRECAUTION [12/2023 - ]

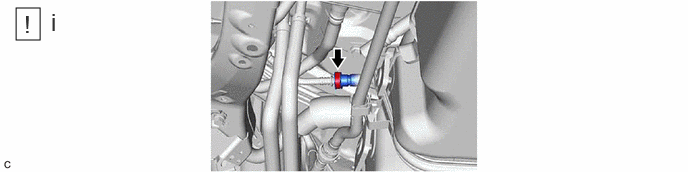

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the fuel tank main tube sub-assembly to the fuel pipe.

      Refer to PRECAUTION [12/2023 - ]

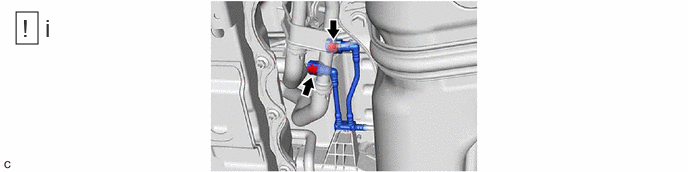

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the fuel tank vent hose sub-assembly to the fuel vapor containment valve (close tank with bolt valve assembly).

      Refer to PRECAUTION [12/2023 - ]

Refer to INSTALLATION [12/2023 - ]

Refer to INSTALLATION [12/2023 - ]
