Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

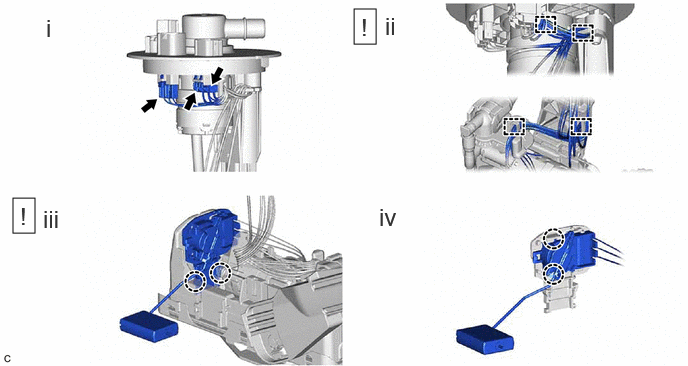

    1. GTY1230044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel sender gauge assembly connector and 2 fuel pump harness connectors.
      2. Disengage the 4 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.
        NOTE:
        • Do not damage the wire harness.
        • When disengaging each wire harness from the clamp, disengage one wire at a time.
      3. Disengage the 2 claws to remove the fuel gauge bracket with the fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.
        NOTE:

        Be careful not to bend the arm of the fuel sender gauge assembly.

      4. Disengage the 2 claws to remove the fuel sender gauge assembly from the fuel gauge bracket.
