Installation [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL SENDER GAUGE ASSEMBLY

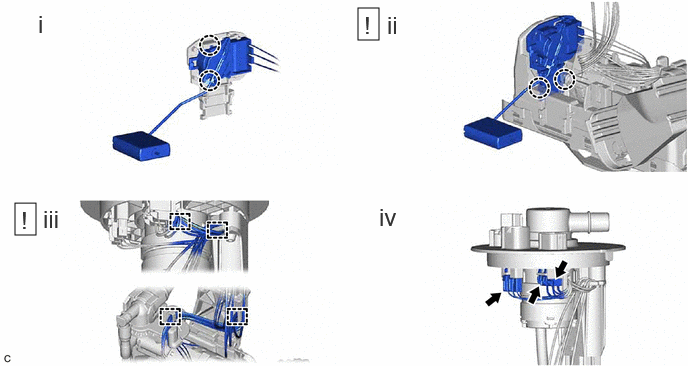

    1. GTY1238516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 claws to install the fuel sender gauge assembly to the fuel gauge bracket.
      2. Engage the 2 claws to install the fuel gauge bracket with the fuel sender gauge assembly to the fuel suction tube with pump and gauge assembly.
        NOTE:

        Be careful not to bend the arm of the fuel sender gauge assembly.

      3. Engage the 4 clamps to connect the wire harness to the fuel suction tube with pump and gauge assembly.
        NOTE:
        • Do not damage the wire harness.
        • When engaging each wire harness to the clamp, engage one wire at a time.
      4. Connect the fuel sender gauge assembly connector and 2 fuel pump harness connectors.
  2. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to INSTALLATION [12/2023 - ]
