Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pump removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Auxiliary battery terminal is disconnected/reconnected Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly Parking Support Brake System* Refer to INITIALIZATION [09/2023 - ]
Replacement of fuel pump Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.
Refer to INITIALIZATION [12/2023 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

WARNING:
  • Never perform work on fuel system components near any possible ignition sources.
    GTY657996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • Vaporized fuel could ignite, resulting in a serious accident.
  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.
    GTY657995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.
NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lighting System (w/ Automatic Headlight Beam Level Control System) Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [09/2023 - ]
Front Camera System
Adaptive High Beam System
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Back Door System Reset back door close position Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


COMPONENTS (REMOVAL)

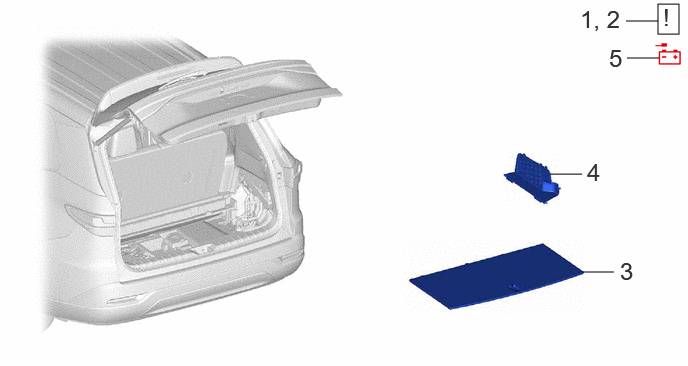

Fig 1: Fuel Pump Removal Components (1 Of 4)
GTY1228412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 PRECAUTION - See step  1 - -
2 DISCHARGE FUEL SYSTEM PRESSURE - See step  2 - -
3 DECK BOARD ASSEMBLY 58410B - - -
4 BATTERY SERVICE HOLE COVER 58441L - - -
5 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -

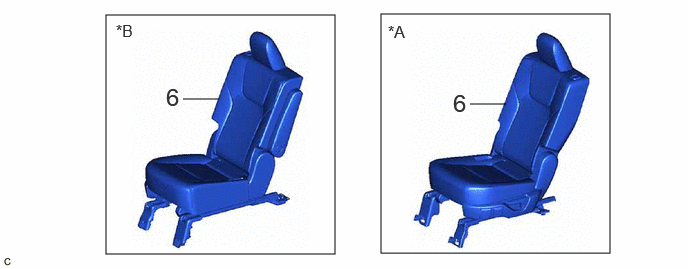

Fig 2: Fuel Pump Removal Components (2 Of 4)
GTY1237361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
6 REAR NO. 1 SEAT ASSEMBLY - - - -
*A for LH Side *B for RH Side

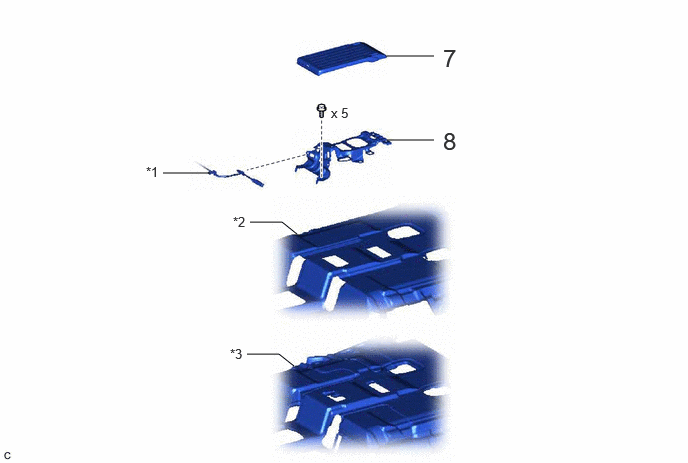

Fig 3: Fuel Pump Removal Components (3 Of 4)
GTY1238161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
7 CONSOLE BOX PLATE 58919B - - -
8 NO. 3 CONSOLE BOX MOUNTING BRACKET 58997 - - -
*1 FLOOR WIRE *2 FRONT FLOOR CARPET ASSEMBLY
*3 NO. 1 REAR FLOOR SILENCER - -

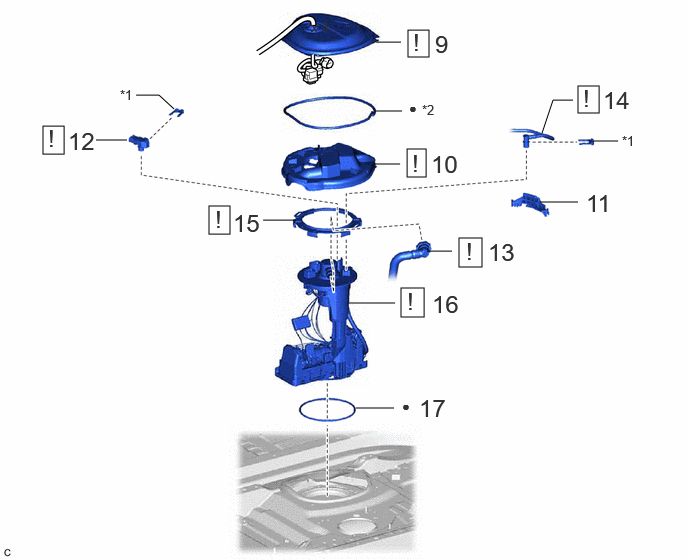

Fig 4: Fuel Pump Removal Components (4 Of 4)
GTY1239575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
9 REAR FLOOR SERVICE HOLE COVER 58325E See step  9 - -
10 FUEL TANK COVER 77641B See step  10 - -
11 NO. 1 FUEL TUBE CLAMP 77285R - - -
12 FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR) 89461 See step  12 - -
13 FUEL TANK VENT HOSE SUB-ASSEMBLY 77404 See step  13 - -
14 FUEL TANK MAIN TUBE SUB-ASSEMBLY 77209F See step  14 - -
15 FUEL PUMP GAUGE RETAINER 77144 See step  15 - -
16 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY 77020A See step  16 - -
17 FUEL SUCTION TUBE SET GASKET 77169A - - -
*1 TUBE JOINT CLIP *2 BUTYL TAPE
Non-reusable part - -
