Reassembly [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PUMP
    1. GTY1131803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring *2 Fuel Pump Spacer
      1. Apply gasoline to a new O-ring. Then install the O-ring and fuel pump spacer to the fuel pump.
      2. Install the fuel pump to the fuel suction plate sub-assembly.
        NOTE:

        Make sure that the O-ring is not cut or pinched during installation.

  2. INSTALL NO. 2 FUEL SUCTION SUPPORT
  3. INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY
  4. INSTALL FUEL PUMP HARNESS

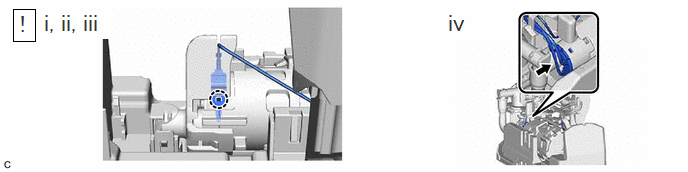

    1. GTY1227638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the claw to install the ground terminal of the fuel pump harness.
      2. Check the connection state of the fuel pump harness.

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Fuel pump body - Ground terminal of the fuel pump harness Always Below 50 Ω
      3. If the result is not as specified, reconnect the fuel pump harness to the fuel pump so that the ground terminal of the fuel pump harness is securely connected to the fuel pump body.
      4. Install the fuel pump harness connector.
  5. INSTALL FUEL SENDER GAUGE ASSEMBLY
    See step  1
