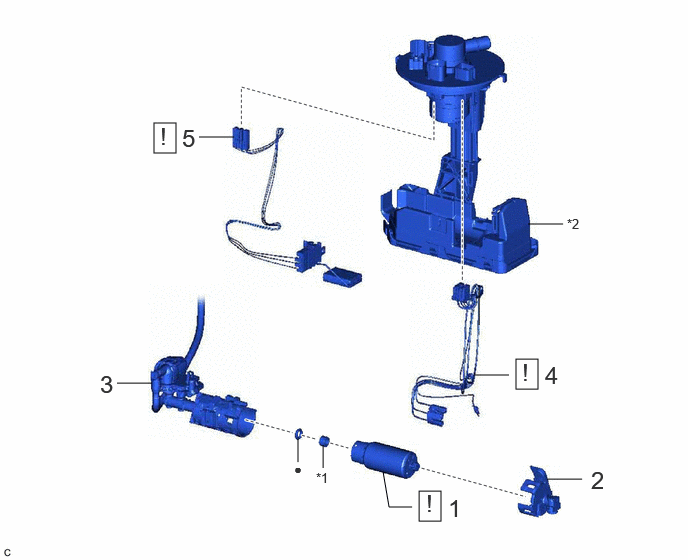

COMPONENTS (REASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL PUMP | 23221 | See step 1 | - | - |
| 2 | NO. 2 FUEL SUCTION SUPPORT | 77175 | - | - | - |
| 3 | FUEL SUCTION PLATE SUB-ASSEMBLY | 77024A | - | - | - |
| 4 | FUEL PUMP HARNESS | 77785 | See step 4 | - | - |
| 5 | FUEL SENDER GAUGE ASSEMBLY | 83320 | See step 5 | - | - |
| *1 | FUEL PUMP SPACER | *2 | FUEL SUB-TANK SUB-ASSEMBLY |
| • | Non-reusable part | - | - |
