COMPONENTS (INSTALLATION)

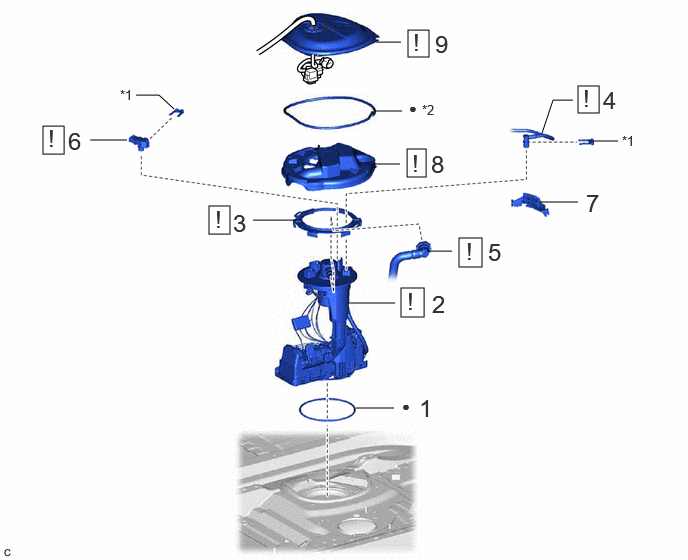

Fig 1: Fuel Pump Installation Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	FUEL SUCTION TUBE SET GASKET	77169A	-	-	-
2	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	77020A	See step 2	-	-
3	FUEL PUMP GAUGE RETAINER	77144	See step 3	-	-
4	FUEL TANK MAIN TUBE SUB-ASSEMBLY	77209F	See step 4	-	-
5	FUEL TANK VENT HOSE SUB-ASSEMBLY	77404	See step 5	-	-
6	FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)	89461	See step 6	-	-
7	NO. 1 FUEL TUBE CLAMP	77285R	-	-	-
8	FUEL TANK COVER	77641B	See step 8	-	-
9	REAR FLOOR SERVICE HOLE COVER	58325E	See step 9	-	-

*1	TUBE JOINT CLIP	*2	BUTYL TAPE
•	Non-reusable part	-	-

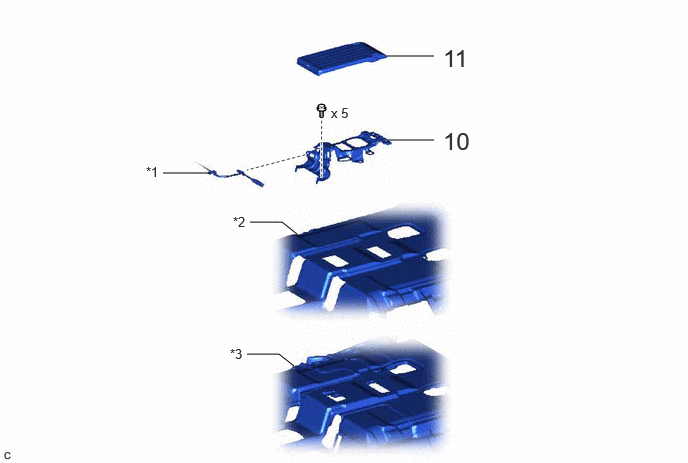

Fig 2: Fuel Pump Installation Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
10	NO. 3 CONSOLE BOX MOUNTING BRACKET	58997	-	-	-
11	CONSOLE BOX PLATE	58919B	-	-	-

*1	FLOOR WIRE	*2	FRONT FLOOR CARPET ASSEMBLY
*3	NO. 1 REAR FLOOR SILENCER	-	-

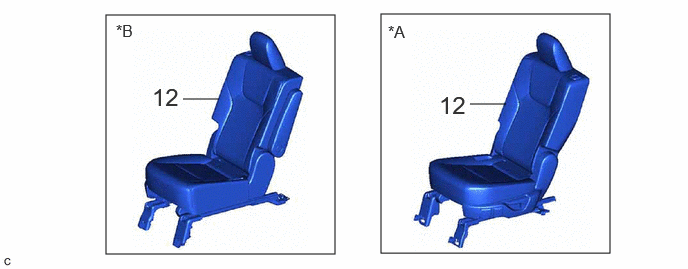

Fig 3: Fuel Pump Installation Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
12	REAR NO. 1 SEAT ASSEMBLY	-	-	-	-

for LH Side

for RH Side

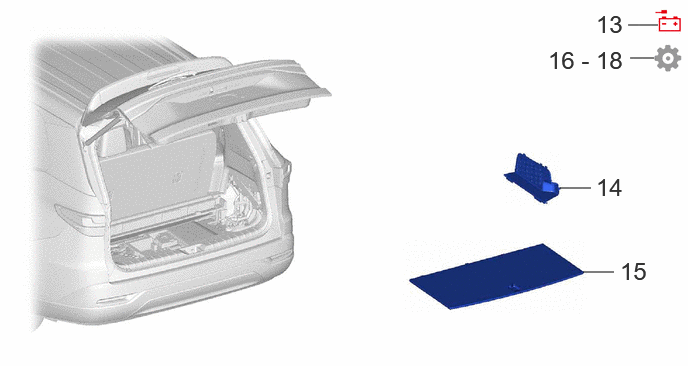

Fig 4: Fuel Pump Installation Components (4 Of 4)

Procedure		Part Name Code
13	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
14	BATTERY SERVICE HOLE COVER	58441L	-	-	-
15	DECK BOARD ASSEMBLY	58410B	-	-	-
16	INSPECT FOR FUEL LEAK	-	-	-	See step 16
17	PERFORM INITIALIZATION	-	-	-	See step 17
18	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	See step 18
