Disassembly [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SENDER GAUGE ASSEMBLY
    See step  2

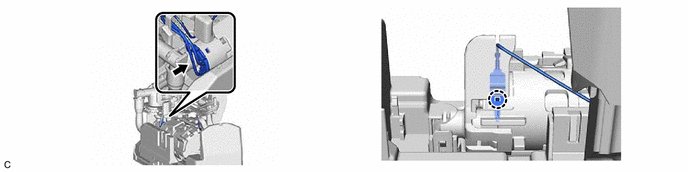

  2. REMOVE FUEL PUMP HARNESS
    1. GTY1227666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

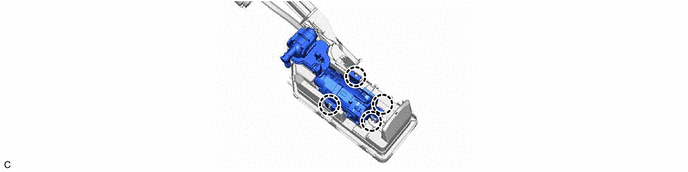

  3. REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY
    1. GTY1227667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 FUEL SUCTION SUPPORT
    1. GTY1133440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FUEL PUMP
    1. GTY1131039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring *2 Fuel Pump Spacer
