Tube

Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.

COMPONENTS (DISASSEMBLY)

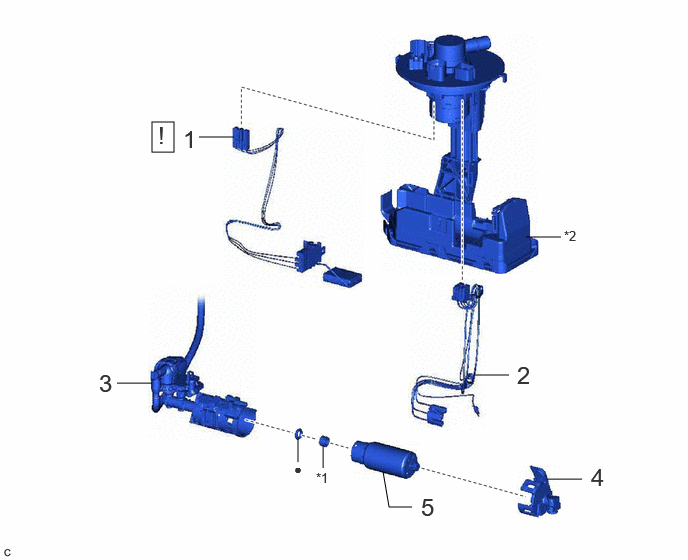

Fig 1: Fuel Pump Disassembly Components

Procedure		Part Name Code
1	FUEL SENDER GAUGE ASSEMBLY	83320	See step 1	-	-
2	FUEL PUMP HARNESS	77785	-	-	-
3	FUEL SUCTION PLATE SUB-ASSEMBLY	77024A	-	-	-
4	NO. 2 FUEL SUCTION SUPPORT	77175	-	-	-
5	FUEL PUMP	23221	-	-	-

*1	FUEL PUMP SPACER	*2	FUEL SUB-TANK SUB-ASSEMBLY
•	Non-reusable part	-	-
