COMPONENTS (REMOVAL)

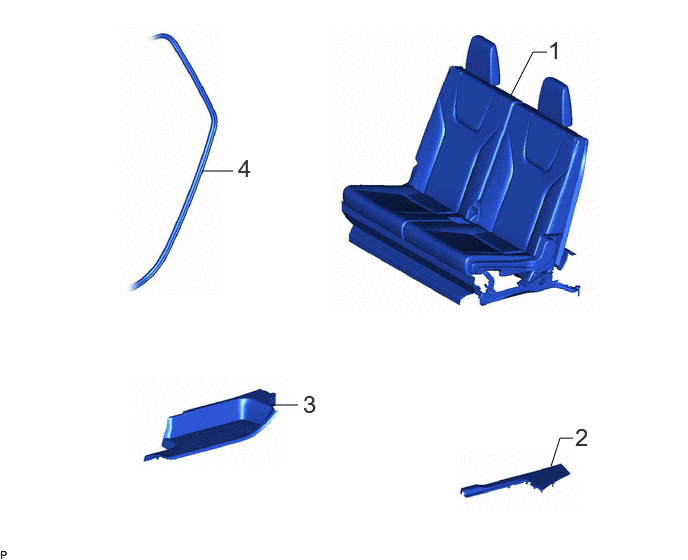

Fig 1: Fuel Pump ECU Removal Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	REAR NO. 2 SEAT ASSEMBLY	-	-	-	-
2	REAR OUTER SEAT TRACK BRACKET COVER LH	72138M	-	-	-
3	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
4	REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332C	-	-	-

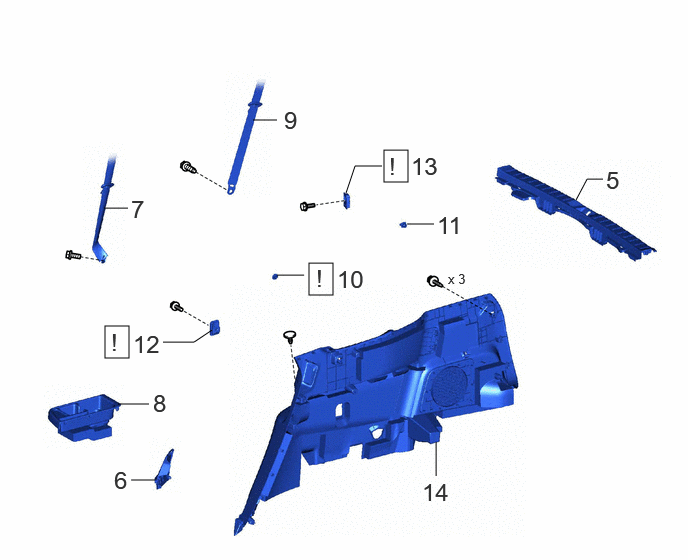

Fig 2: Fuel Pump ECU Removal Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
5	REAR FLOOR FINISH PLATE	58387B	-	-	-
6	CENTER PILLAR LOWER GARNISH BELT HOLE COVER LH	73296A	-	-	-
7	REAR SEAT OUTER BELT ASSEMBLY LH	73370E	-	-	-
8	DECK SIDE TRIM COVER LH	64715C	-	-	-
9	REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH	73570	-	-	-
10	DECK TRIM POCKET COVER	64974	See step 10	-	-
11	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	64725F	-	-	-
12	ROPE HOOK	66311	See step 12	-	-
13	ROPE HOOK ASSEMBLY	66310H	See step 13	-	-
14	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	-	-	-

Fig 3: Fuel Pump ECU Removal Components (3 Of 3)

Procedure		Part Name Code

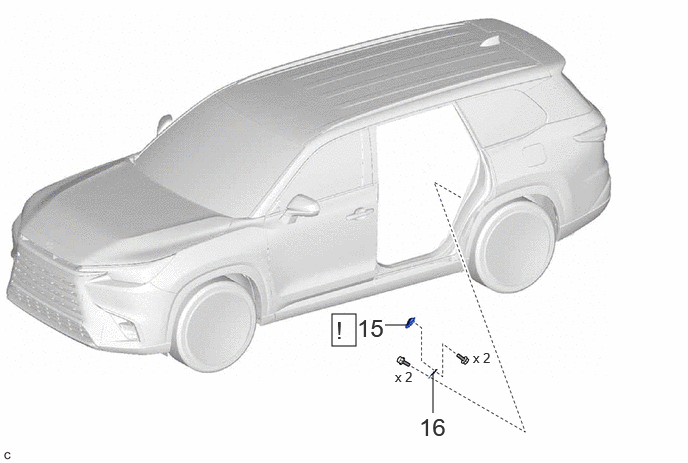

15	FUEL PUMP CONTROL ECU	89571	See step 15	-	-
16	FUEL PUMP CONTROL ECU BRACKET	89573	-	-	-
