COMPONENTS (INSTALLATION)

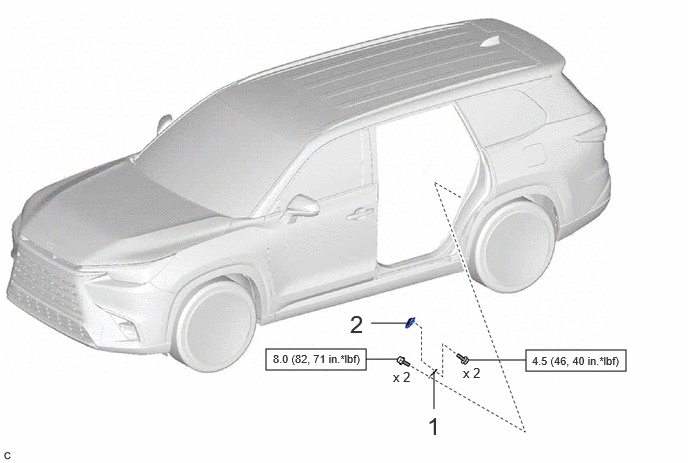

Fig 1: Fuel Pump ECU Installation Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	FUEL PUMP CONTROL ECU BRACKET	89573	-	-	-
2	FUEL PUMP CONTROL ECU	89571	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

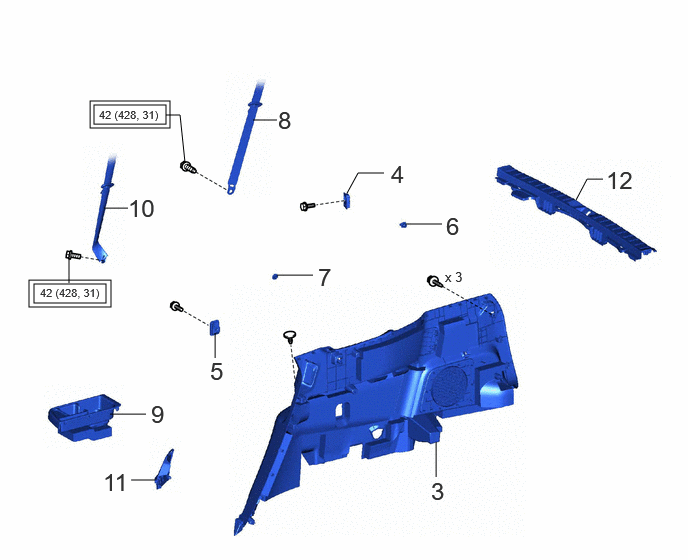

Fig 2: Fuel Pump ECU Installation Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
3	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	-	-	-
4	ROPE HOOK ASSEMBLY	66310H	-	-	-
5	ROPE HOOK	66311	-	-	-
6	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	64725F	-	-	-
7	DECK TRIM POCKET COVER	64974	-	-	-
8	REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH	73570	-	-	-
9	DECK SIDE TRIM COVER LH	64715C	-	-	-
10	REAR SEAT OUTER BELT ASSEMBLY LH	73370E	-	-	-
11	CENTER PILLAR LOWER GARNISH BELT HOLE COVER LH	73296A	-	-	-
12	REAR FLOOR FINISH PLATE	58387B	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

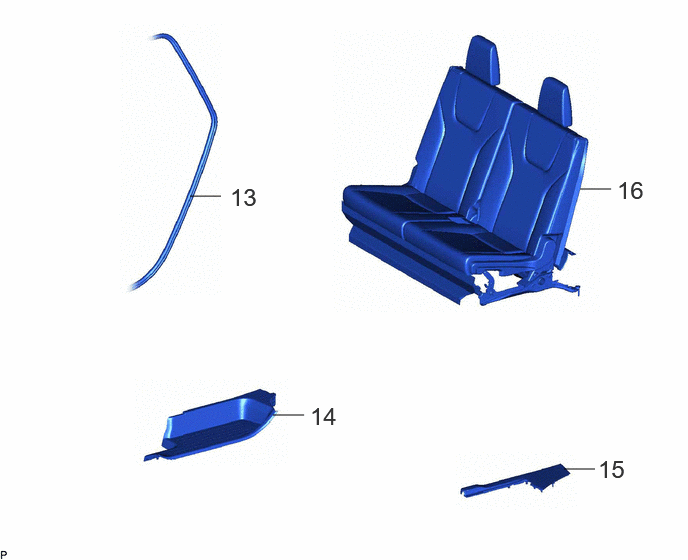

Fig 3: Fuel Pump ECU Installation Components (3 Of 3)

Procedure		Part Name Code
13	REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332C	-	-	-
14	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
15	REAR OUTER SEAT TRACK BRACKET COVER LH	72138M	-	-	-
16	REAR NO. 2 SEAT ASSEMBLY	-	-	-	-
