Removal [12/2023 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to REMOVAL [12/2023 - ]

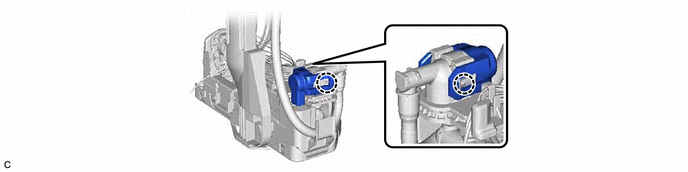

- REMOVE FUEL PRESSURE REGULATOR HOLDER
- REMOVE FUEL MAIN VALVE ASSEMBLY

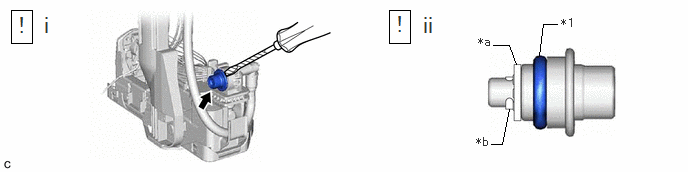

*1 O-ring - - *a Mesh *b Mini-clip - Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel suction tube with pump and gauge assembly.NOTE:
- Pull out the fuel main valve assembly carefully because the O-ring is firmly installed between the fuel main valve assembly and fuel suction tube with pump and gauge assembly.
- Do not damage the fuel suction tube with pump and gauge assembly.
- Remove the O-ring from the fuel main valve assembly.NOTE:
Do not remove the mesh and mini-clip from the fuel main valve assembly.
- Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel suction tube with pump and gauge assembly.
