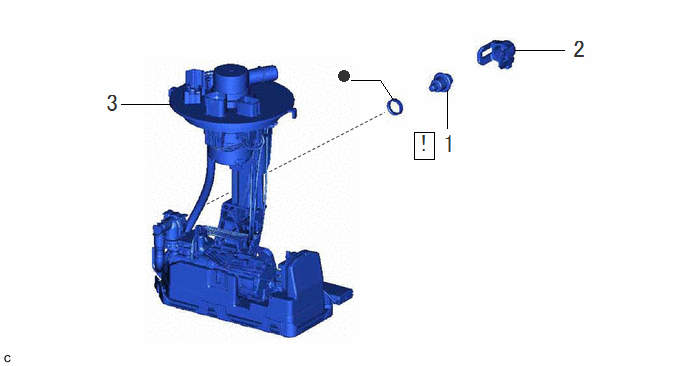

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL MAIN VALVE ASSEMBLY | 23070 | See step 1 | - | - |
| 2 | FUEL PRESSURE REGULATOR HOLDER | 23283B | - | - | - |
| 3 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | 77020A | - | - | - |
| • | Non-reusable part | - | - |
