The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during direct fuel injector assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*	Refer to INITIALIZATION [09/2023 - ]
Replacement of direct fuel injector assembly Replacement of fuel (engine room side) pump assembly	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [12/2023 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

WARNING:

Never perform work on fuel system components near any possible ignition sources.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Vaporized fuel could ignite, resulting in a serious accident.

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System*	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [09/2023 - ]
Lighting System (w/ Automatic Headlight Beam Level Control System)	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [09/2023 - ]
Front Camera System
Adaptive High Beam System

*: for Gasoline Model

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

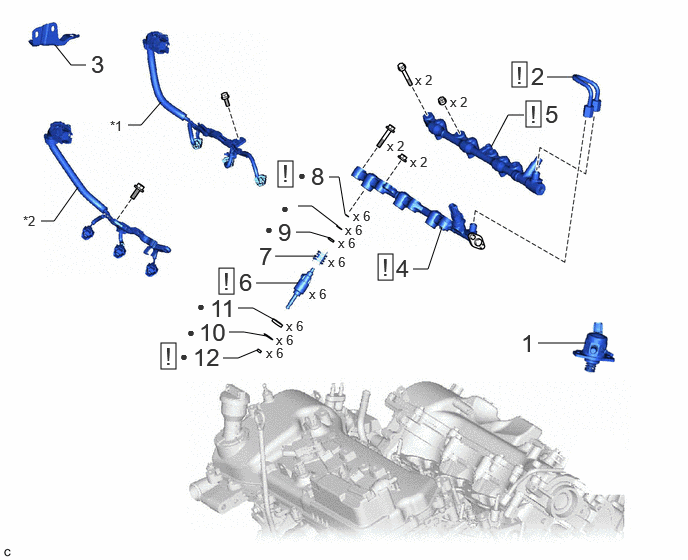

Fig 1: Fuel Injector (For Direct Injection) Removal Components

Procedure		Part Name Code
1	FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY	23100X	-	-	-
2	NO. 2 FUEL PIPE SUB-ASSEMBLY	23802B	See step 2	-	-
3	WIRE HARNESS CLAMP BRACKET	-	-	-	-
4	FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH	23860	See step 4	-	-
5	FUEL DELIVERY PIPE RH	23814E	See step 5	-	-
6	DIRECT FUEL INJECTOR ASSEMBLY	23250E	See step 6	-	-
7	NOZZLE HOLDER CLAMP	23695A	-	-	-
8	NO. 3 FUEL INJECTOR BACK-UP RING	23258	See step 8	-	-
9	NO. 1 FUEL INJECTOR BACK-UP RING	23256	-	-	-
10	C-RING	-	-	-	-
11	INJECTOR VIBRATION INSULATOR	23291A	-	-	-
12	FUEL INJECTOR SEAL	23255A	See step 12	-	-

*1	NO. 6 ENGINE WIRE	*2	NO. 7 ENGINE WIRE
•	Non-reusable part	-	-
