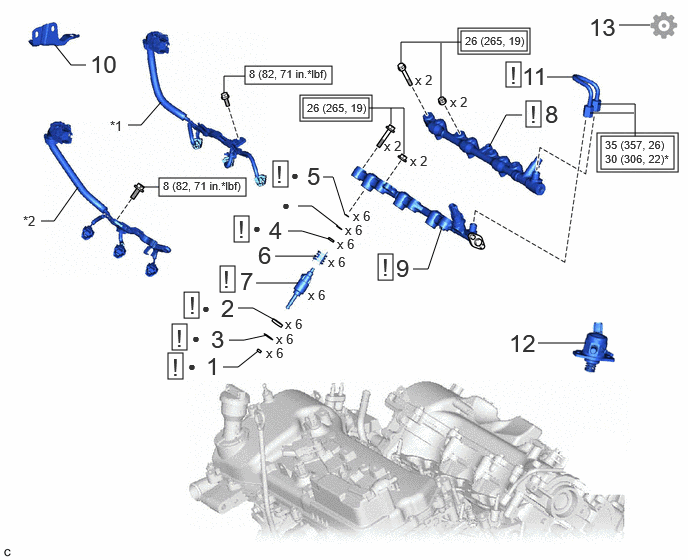

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL INJECTOR SEAL | 23255A | See step 1 | - | - |
| 2 | INJECTOR VIBRATION INSULATOR | 23291A | See step 2 | - | - |
| 3 | C-RING | - | See step 3 | - | - |
| 4 | NO. 1 FUEL INJECTOR BACK-UP RING | 23256 | See step 4 | - | - |
| 5 | NO. 3 FUEL INJECTOR BACK-UP RING | 23258 | See step 5 | - | - |
| 6 | NOZZLE HOLDER CLAMP | 23695A | - | - | - |
| 7 | DIRECT FUEL INJECTOR ASSEMBLY | 23250E | See step 7 | - | - |
| 8 | FUEL DELIVERY PIPE RH | 23814E | See step 8 | - | - |
| 9 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH | 23860 | See step 9 | - | - |
| 10 | WIRE HARNESS CLAMP BRACKET | - | - | - | - |
| 11 | NO. 2 FUEL PIPE SUB-ASSEMBLY | 23802B | See step 11 | - | - |
| 12 | FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY | 23100X | - | - | - |
| 13 | PERFORM INITIALIZATION | - | - | - | See step 13 |
| *1 | NO. 6 ENGINE WIRE | *2 | NO. 7 ENGINE WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
