Confirmation Driving Pattern

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
Refer to DIAGNOSIS SYSTEM [12/2023 - ]
When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Refer to DTC CHECK / CLEAR [12/2023 - ]

Turn the ignition switch off and leave the vehicle for several hours.
Turn the ignition switch ON [A].
Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature and Intake Air Temperature.
Check that the value of the Data List item Coolant Temperature is 56°C (133°F) or less and the value of the Data List item Intake Air Temperature is between 0 and 35°C (32 and 95°F).
Put the engine in Inspection Mode (2WD for measuring Exhaust Gas).
Refer to INSPECTION MODE PROCEDURE [09/2023 - ]
Set the heater control to MAX HOT with fresh air mode selected and turn the A/C off.
Start the engine.
Press the EV/HV mode selection switch to select HV mode.
With the engine running, drive the vehicle at 80 km/h (50 mph) for 15 minutes [B].
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.
After the value of the Data List item Coolant Temperature stabilizes, check that it is 75°C (167°F) or higher.
HINT:

If the value of the Data List item Coolant Temperature is less than 75°C (167°F) while driving the vehicle at 80 km/h (50 mph), inspect the cooling system and thermostat.
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P0128-00 or P0128-07.
Check the DTC judgment result.
HINT:
- If the judgment result is NORMAL, the system is normal.
- If the judgment result is ABNORMAL, the system has a malfunction.
- If the judgment result is INCOMPLETE, If the judgment result is INCOMPLETE, perform steps [D] through [G].

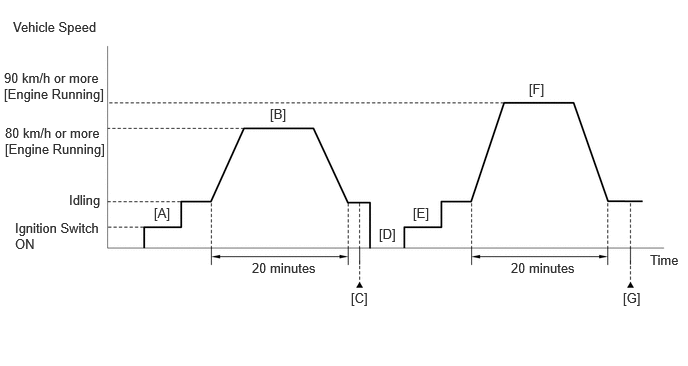

- [A] to [C]: Normal judgment procedure.
  The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
- When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
Turn the ignition switch off and leave the vehicle outside overnight [D].
Turn the ignition switch ON [E].
Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.
Check that the value of the Data List item Coolant Temperature is 25°C (77°F) or less.
Put the engine in Inspection Mode (2WD for measuring Exhaust Gas).
Refer to INSPECTION MODE PROCEDURE [09/2023 - ]
Start the engine.
Press the EV/HV mode selection switch to select HV mode.
With the engine running, drive the vehicle at 90 km/h (56 mph) or more for 20 minutes [F].
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.
Enter the following menus: Powertrain / Engine / Trouble Codes [G].
Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P0128-00 or P0128-07.
Check the DTC judgment result again.
HINT:
- If the judgment result is NORMAL, the system is normal.
- If the judgment result is ABNORMAL, the system has a malfunction.
- [D] to [G]: Normal judgment procedure.
  The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
- When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
