DTC P0110-15: Intake Air Temperature Sensor 1 Bank 1 Circuit Short to Battery or Open [12/2023 - ]: Procedure

Pre-procedure1

• Disconnect the mass air flow meter sub-assembly connector.

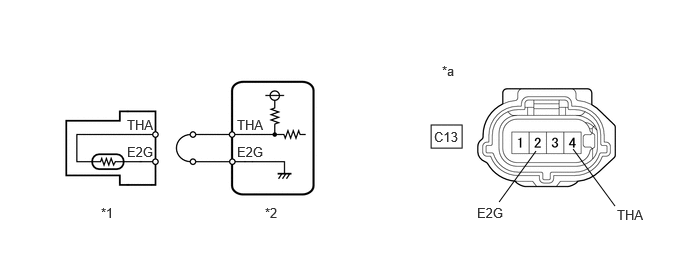

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *1	Mass Air Flow Meter Sub-assembly	*2	ECM
  *a	Front view of wire harness connector (to Mass Air Flow Meter Sub-assembly)	-	-

• Connect terminals 4 (THA) and 2 (E2G) of the mass air flow meter sub-assembly connector on the wire harness side.

• According to the display on the GTS, read the Data List.

  Powertrain > Engine > Data List

  Tester Display
  Intake Air Temperature

  Result

  Result	Proceed to
  The value of Intake Air Temperature is more than 128 °C	A
  None of the above conditions are met	B

  HINT:

  128°C (262°F)

Post-procedure1

• None.

Result:

A

REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [12/2023 - ]

Result:

B

See step  2

Pre-procedure1

• Disconnect the mass air flow meter sub-assembly connector.
• Disconnect the ECM connector.

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  C13-4 (THA) - C86-102 (THA)	Always	Below 1 Ω	Ω
  C13-2 (E2G) - C86-115 (E2G)	Always	Below 1 Ω	Ω
  C13-4 (THA) or C86-102 (THA) - Other terminals	Always	10 kΩ or higher	kΩ

  Result

  Proceed to
  OK
  NG

Post-procedure1

• None.

Result:

OK

REPLACE ECM. Refer to  REMOVAL [12/2023 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
