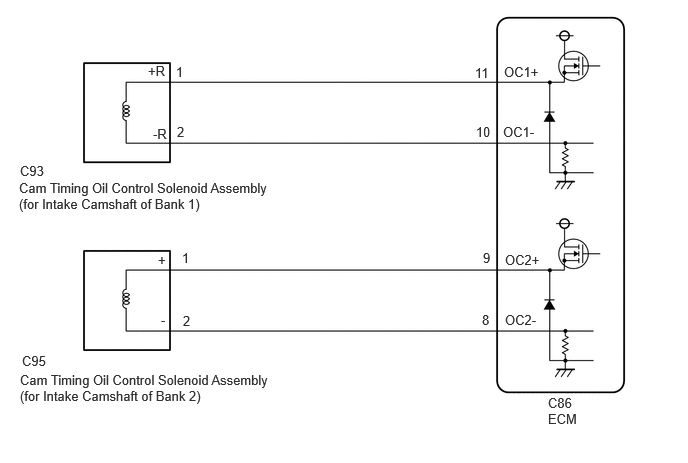

DTC P0010-13: A Camshaft Position Actuator Bank 1 Circuit Open; DTC P0020-13: Camshaft Position "A" Actuator Bank 2 Circuit Open [12/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
GTY1228049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
