Parts Location [12/2023 - ]: Illustration

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

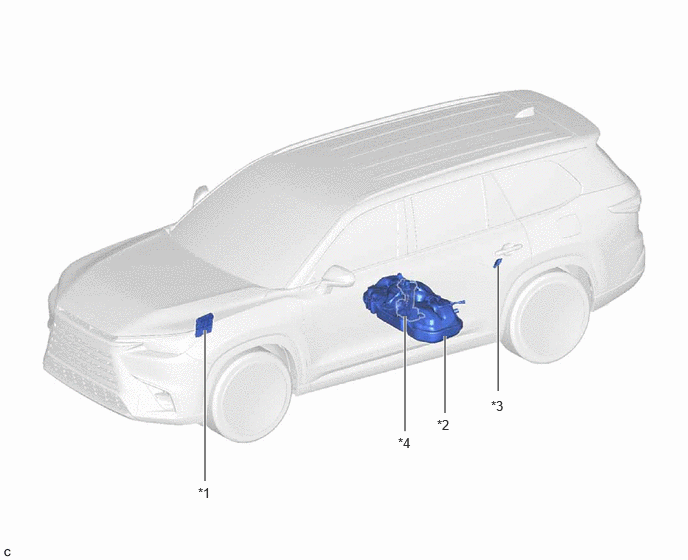

*1	ECM	*2	FUEL TANK SUB-ASSEMBLY
*3	FUEL PUMP CONTROL ECU	*4	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL PUMP (for Low Pressure) - FUEL SENDER GAUGE ASSEMBLY - FUEL MAIN VALVE ASSEMBLY

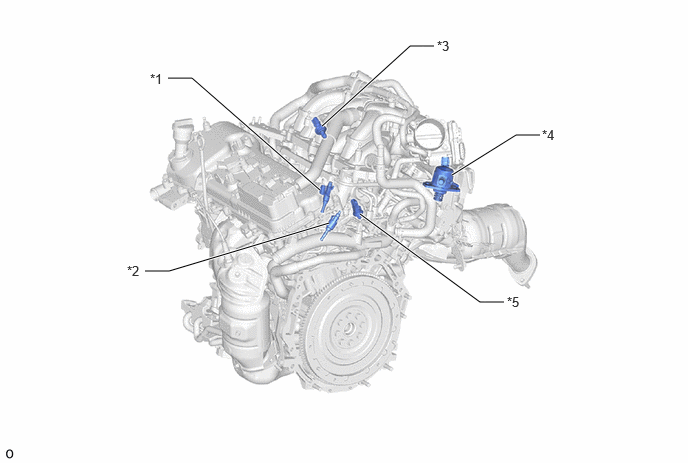

*1	PORT FUEL INJECTOR ASSEMBLY	*2	DIRECT FUEL INJECTOR ASSEMBLY
*3	FUEL PRESSURE SENSOR (for Low Pressure)	*4	FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)
*5	FUEL PRESSURE SENSOR (for High Pressure)	-	-
