Installation [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

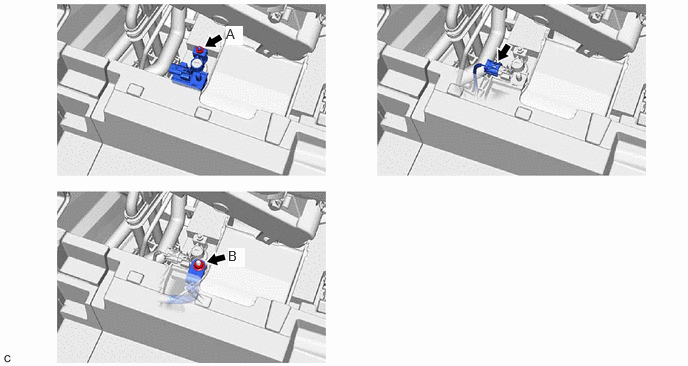

INSTALL BATTERY STATE SENSOR ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Nut (A)

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Nut (B)

Torque: 7.6 N*m (77 kgf*cm, 67 in.*lbf)

INSTALL BATTERY SERVICE HOLE COVER
INSTALL DECK BOARD ASSEMBLY
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [09/2023 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [09/2023 - ]
