Parts Location [09/2023 - ]: Illustration

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Hybrid Transaxle System Replacement Components (1 Of 4) [09/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TCM

ECM

Fig 1: Hybrid Transaxle System Replacement Components (2 Of 4) [09/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TRANSMISSION FLOOR SHIFT ASSEMBLY	*2	COMBINATION METER ASSEMBLY
*3	HYBRID VEHICLE CONTROL ECU ASSEMBLY	*4	DLC3
*5	STOP LIGHT SWITCH ASSEMBLY	-	-

Fig 1: Hybrid Transaxle System Replacement Components (3 Of 4) [09/2023 - ]

*1	SOLENOID (SL1) VALVE	*2	SOLENOID (SL2) VALVE
*3	SOLENOID (SL3) VALVE	*4	SOLENOID (SL5) VALVE
*5	SOLENOID (SL6) VALVE	*6	SOLENOID (SL7) VALVE
*7	SOLENOID (SL8) VALVE	*8	SOLENOID (SLT) VALVE
*9	SOLENOID (SC2) VALVE	*10	SOLENOID (SC4) VALVE
*11	SOLENOID (SC6) VALVE	*12	SOLENOID (SR) VALVE
*13	SOLENOID (SRL1) VALVE	*14	TRANSAXLE FLUID TEMPERATURE SENSOR
*15	TRANSMISSION PRESSURE SWITCH	*16	TRANSMISSION WIRE

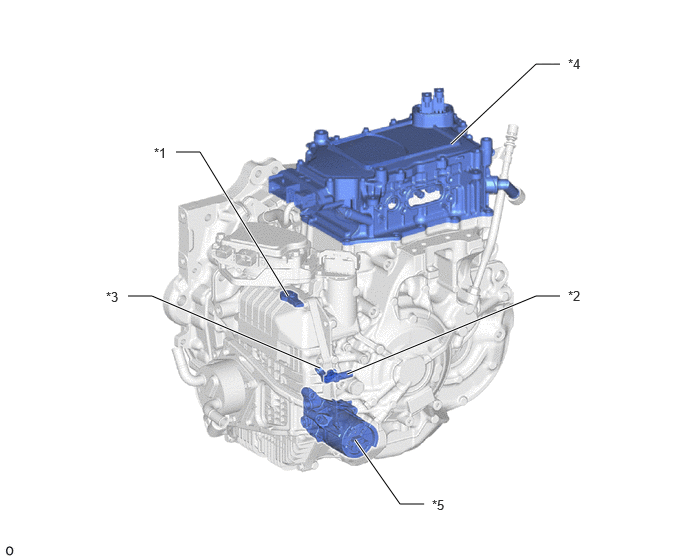

Fig 1: Hybrid Transaxle System Replacement Components (4 Of 4) [09/2023 - ]

*1	OIL PRESSURE SENSOR	*2	NO. 2 TRANSMISSION REVOLUTION SENSOR
*3	TRANSMISSION REVOLUTION SENSOR	*4	HYBRID MOTOR CONTROL INVERTER ASSEMBLY - MOTOR GENERATOR CONTROL ECU - EOP ECU
*5	OIL PUMP WITH MOTOR ASSEMBLY	-	-
