Caution / Notice / Hint
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- After replacing the ECM, make sure to perform vehicle identification number (VIN) registration and update ECU security key.
- After performing the vehicle identification number (VIN) registration and update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.

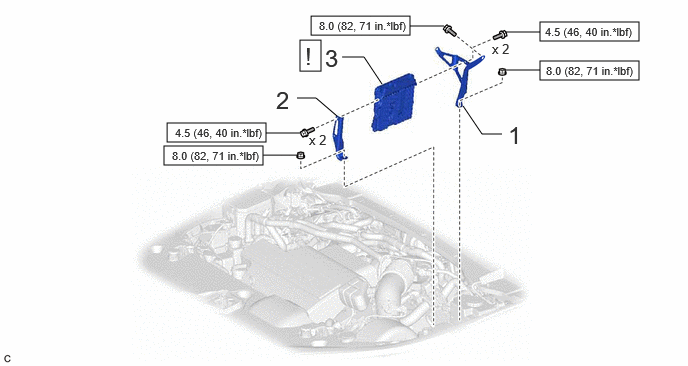

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 2 ECM BRACKET | 89668 | - | - | - |
| 2 | NO. 1 ECM BRACKET | 89667E | - | - | - |
| 3 | ECM | 89661 | See step 3 | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 4 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 5 | BATTERY SERVICE HOLE COVER | 58441L | - | - | - |
| 6 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 7 | VEHICLE IDENTIFICATION NUMBER (VIN) REGISTRATION | - | - | - | See step 7 |
| 8 | UPDATE ECU SECURITY KEY | - | - | - | See step 8 |
| 9 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL | - | - | - | See step 9 |
