Caution / Notice / Hint
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

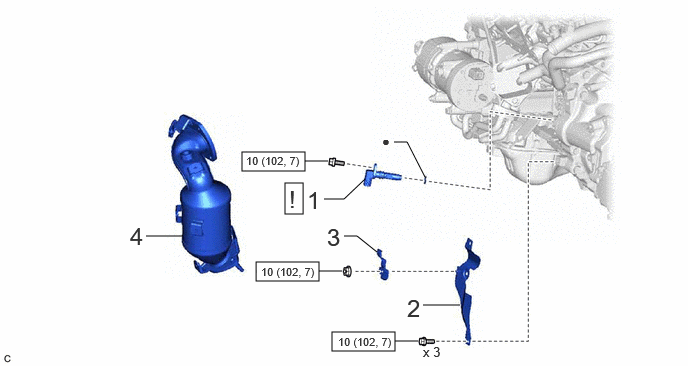

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CRANKSHAFT POSITION SENSOR | 11401G | See step 1 | - | - |
| 2 | CRANKSHAFT POSITION SENSOR PROTECTOR | 19312 | - | - | - |
| 3 | WATER HOSE CLAMP | 16581 | - | - | - |
| 4 | EXHAUST MANIFOLD ASSEMBLY LH | 17150 | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
