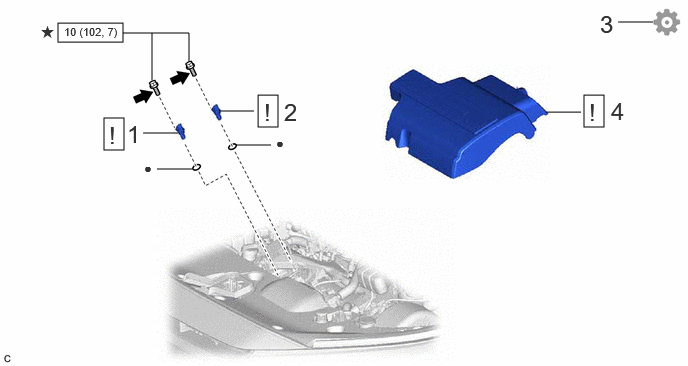

Fig 1: Camshaft Position Sensor (For Bank 2) Installation Components With Torque Specifications

Procedure		Part Name Code
1	VVT SENSOR (for Exhaust Side of Bank 2)	11102A	See step 1	-	-
2	VVT SENSOR (for Intake Side of Bank 2)	11102A	See step 2	-	-
3	INSPECT FOR ENGINE OIL LEAK	-	-	-	See step 3
4	V-BANK COVER SUB-ASSEMBLY	11209	See step 4	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part
