Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during VVT sensor removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of throttle body with motor assembly Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [12/2023 - ]

COMPONENTS (REMOVAL)

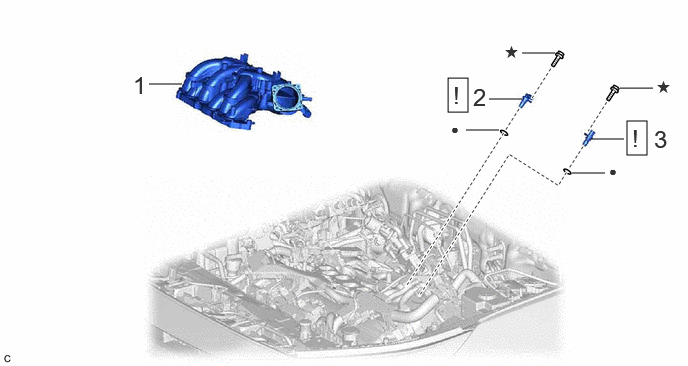

Fig 1: Camshaft Position Sensor (For Bank 1) Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	INTAKE AIR SURGE TANK ASSEMBLY	17190	-	-	-
2	VVT SENSOR (for Intake Side of Bank 1)	11101E	See step 2	-	-
3	VVT SENSOR (for Exhaust Side of Bank 1)	11102A	See step 3	-	-

•

Non-reusable part

Precoated part
