COMPONENTS (INSTALLATION)
Fig 1: Camshaft Oil Control Valve (For Bank 2) Installation Components With Torque Specifications (1 Of 2)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) | - | See step 1 | - | - |
| 2 | CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) | - | See step 2 | - | - |
| 3 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Bank 2) | 15370C | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

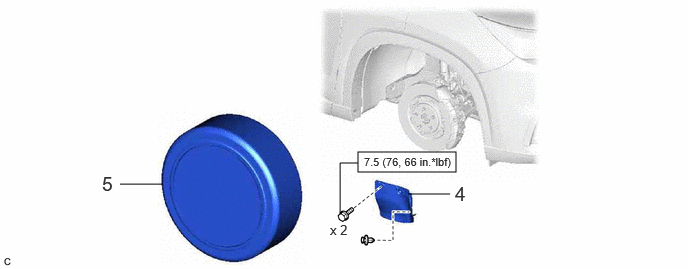

Fig 2: Camshaft Oil Control Valve (For Bank 2) Installation Components With Torque Specifications (2 Of 2)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 4 | FRONT FENDER APRON SEAL RH | 53736 | - | - | - |
| 5 | FRONT WHEEL RH | - | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
