COMPONENTS (REMOVAL)

Fig 1: Camshaft Oil Control Solenoid (For Bank 1) Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	FRONT WHEEL RH	-	-	-	-
2	FRONT FENDER APRON SEAL RH	53736	-	-	-

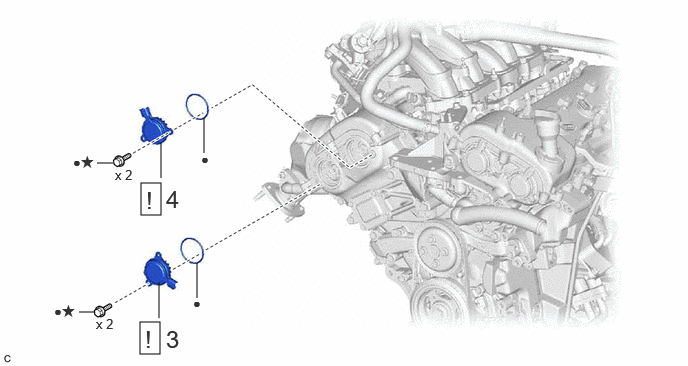

Fig 2: Camshaft Oil Control Solenoid (For Bank 1) Removal Components (2 Of 2)

Procedure		Part Name Code
3	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)	15370B	See step 3	-	-
4	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)	15370B	See step 4	-	-

•

Non-reusable part

Precoated part
