COMPONENTS (INSTALLATION)

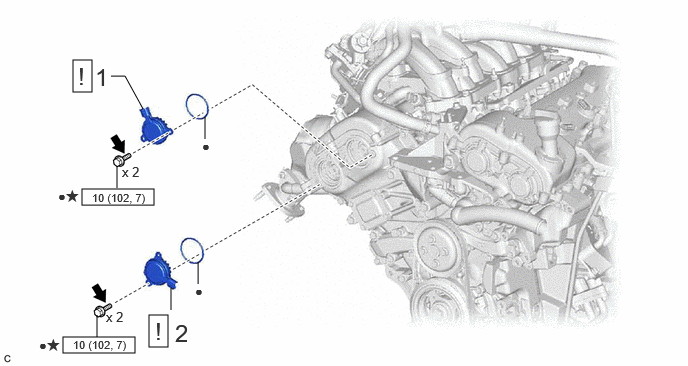

Fig 1: Camshaft Oil Control Solenoid (For Bank 1) Installation Components With Torque Specifications (1 Of 2)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) | 15370B | See step 1 | - | - |
| 2 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) | 15370B | See step 2 | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
Fig 2: Camshaft Oil Control Solenoid (For Bank 1) Installation Components With Torque Specifications (2 Of 2)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 3 | INSPECT FOR ENGINE OIL LEAK | - | - | - | See step 3 |
| 4 | FRONT FENDER APRON SEAL RH | 53736 | - | - | - |
| 5 | FRONT WHEEL RH | - | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
