Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during air fuel ratio sensor removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of air fuel ratio sensor (sensor 2) Gas leak from exhaust system is repaired	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [12/2023 - ]

WARNING:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMPONENTS (REMOVAL)

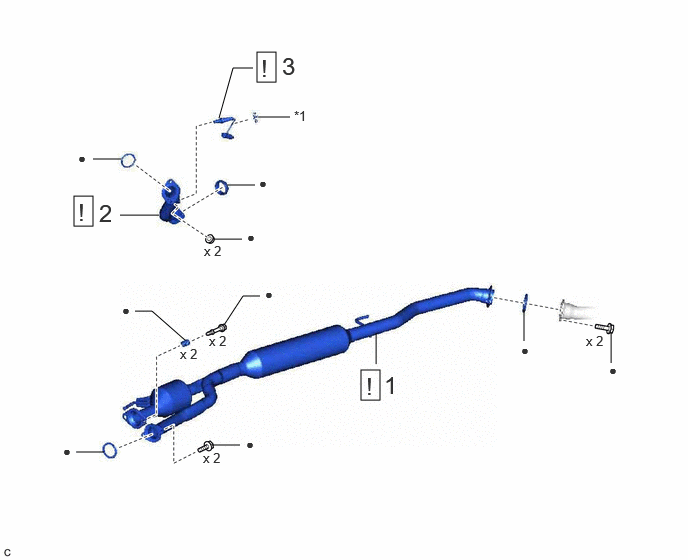

Fig 1: Air Fuel Ratio Sensor (For Bank 1 Sensor 2) Removal Components

Procedure		Part Name Code
1	FRONT EXHAUST PIPE ASSEMBLY	17410	See step 1	-	-
2	FRONT EXHAUST PIPE SUB-ASSEMBLY	17401	See step 2	-	-
3	AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2)	89467E	See step 3	-	-

*1	WIRING HARNESS CLAMP	-	-
•	Non-reusable part	-	-
