Instructions for Connecting SST [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

CONNECT THE SST

SST: 09893-42030

WARNING:

Be sure to wear insulated gloves and protective goggles.

NOTE:

Make sure to observe the following points when using the SST.

Set it in a secure, flat place.
Set it in a dry place protected from dust and water.

Connect the SST to the Ji1, Ji2 and Ji3 HV supply battery assembly connectors and the HV supply battery assembly.

NOTE:

Make sure that the connector is connected securely.

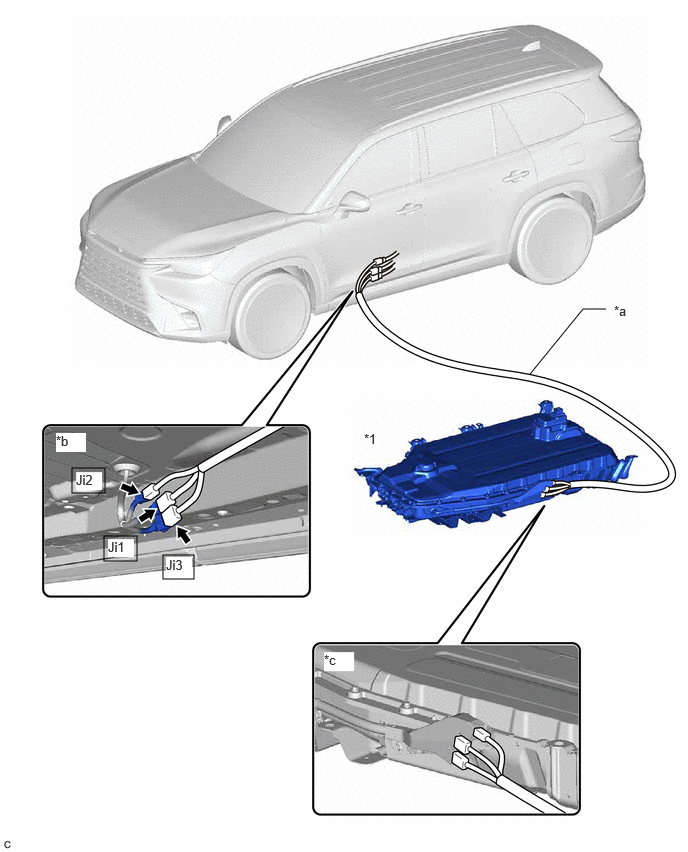

*1	HV Supply Battery Assembly	-	-
*a	SST	*b	SST (Vehicle Side)
*c	SST (HV Supply Battery Assembly Side)	-	-

Result

Proceed to
NEXT

Result:

END
