Shut Down Signal Circuit [12/2023 - ]: Procedure
- CHECK HYBRID VEHICLE CONTROL ECU ASSEMBLY
Pre-procedure1
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
*a Component with harness connected

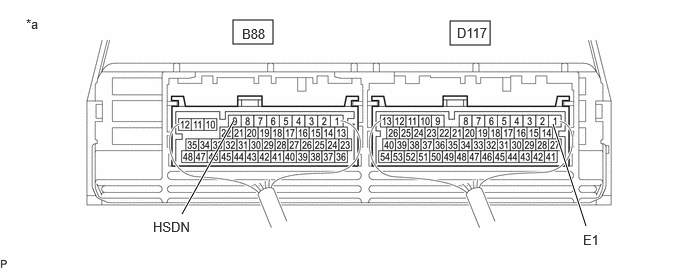

(Hybrid Vehicle Control ECU Assembly)- - Standard Voltage
Tester Connection Condition Specified Condition Result B88-9 (HSDN) - D117-1 (E1) Ignition switch ON Below 4.5 V V Result
Proceed to OK NG
Post-procedure1
- Turn the ignition switch off.
Result:
OK
SHUTDOWN SIGNAL CIRCUIT NORMAL (PERFORM NEXT STEP FOR REFERENCED DTC)
Result:
NG
See step 2
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - HYBRID MOTOR CONTROL INVERTER ASSEMBLY) WARNING:
Be sure to wear insulated gloves.
Pre-procedure1
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the service information because this may cause a malfunction.

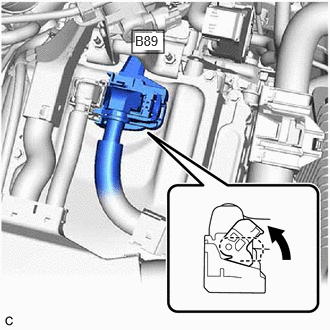

- Disconnect the hybrid motor control inverter assembly connector.
- Disconnect the hybrid vehicle control ECU assembly connector.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.

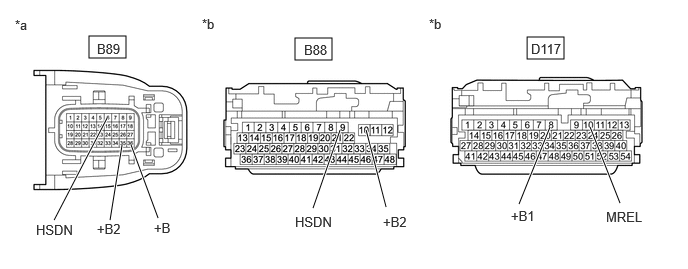

*a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b Front view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly)Standard Voltage
Tester Connection Condition Specified Condition Result B89-6 (HSDN) or B88-9 (HSDN) - Body ground Ignition switch ON Below 1 V V NOTE:Turning the ignition switch to ON with the hybrid vehicle control ECU assembly and hybrid motor control inverter assembly connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition Result B89-6 (HSDN) - B89-36 (+B) Ignition switch off 10 kΩ or higher kΩ B89-6 (HSDN) - B89-35 (+B2) Ignition switch off 10 kΩ or higher kΩ B88-9 (HSDN) - D117-8 (+B1) Ignition switch off 10 kΩ or higher kΩ B88-9 (HSDN) - D117-10 (MREL) Ignition switch off 10 kΩ or higher kΩ Result
Proceed to OK NG
Post-procedure1
- Reconnect the hybrid vehicle control ECU assembly connector.
- Reconnect the hybrid motor control inverter assembly connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- Check that the service plug grip is not installed.
- CHECK HYBRID MOTOR CONTROL INVERTER ASSEMBLY WARNING:
Be sure to wear insulated gloves.
Pre-procedure1
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the service information because this may cause a malfunction.
- Disconnect the hybrid motor control inverter assembly connector.
- Measure the resistance according to the value(s) in the table below.

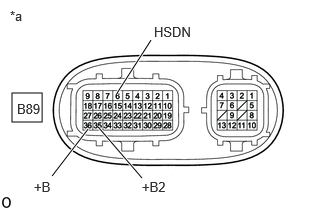

*a Component without harness connected
(Hybrid Motor Control Inverter Assembly)Standard Resistance
Tester Connection Condition Specified Condition Result B89-6 (HSDN) - B89-36 (+B) Ignition switch off 10 kΩ or higher kΩ B89-6 (HSDN) - B89-35 (+B2) Ignition switch off 10 kΩ or higher kΩ Result
Proceed to OK NG
Post-procedure1
- Reconnect the hybrid motor control inverter assembly connector.
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to REMOVAL [12/2023 - ]
Result:
NG
REPLACE HYBRID MOTOR CONTROL INVERTER ASSEMBLY. Refer to REMOVAL [12/2023 - ]
- Check that the service plug grip is not installed.
